Former Macy's Information
Macy's Building - 1st Floor documentation hub for drawings, panels, breakers, fire alarm, transformers, photos, AutoCAD files, and future tenant / contractor reference.
📐
Drawings
PDF / CAD / Dropbox
⚡
Electrical
Breakers / panels / closets
🚨
Fire Alarm
Dead system photos
📷
Panel Photos
Electrical closet index
📁
Exhibit E
Due Diligence Materials
Main Drawings & Documentation
| Category | Status | Link | Notes |
|---|---|---|---|
| Whole Mall PDF / CAD Drawings | External | Dropbox Link | Web server cannot handle this capacity. |
| Architectural - As Built | Acquired | RVC318F01.dwg | Main floor architectural drawings (AUTOCAD). |
| Mechanical | Acquired | Mechanical PDF | Mechanical / HVAC drawings. |
| RTU Location (Lower) | Acquired | RTU Layout PDF | Mechanical / HVAC drawings. RTU 1, 2, 7, 8, 9 |
| Electrical (Primary) | Acquired | 1st Floor Primary Power | Breakers, panels, transformers, closets, amperage. |
| Electrical (Secondary) | Acquired | 1st Floor Secondary Power | Secondary Power |
| Plumbing | No Pre-Existing Plans | Plumbing drawing set. | |
| Structural - Live Load | Acquired | Structural Directory | Live load information for first floor. |
| Fire Protection | 1st Floor Acquired | Fire Protection | System exists drawings are being rebuilt. |
| Fire Alarm | Acquired | View Photos | Existing panel photographed. |

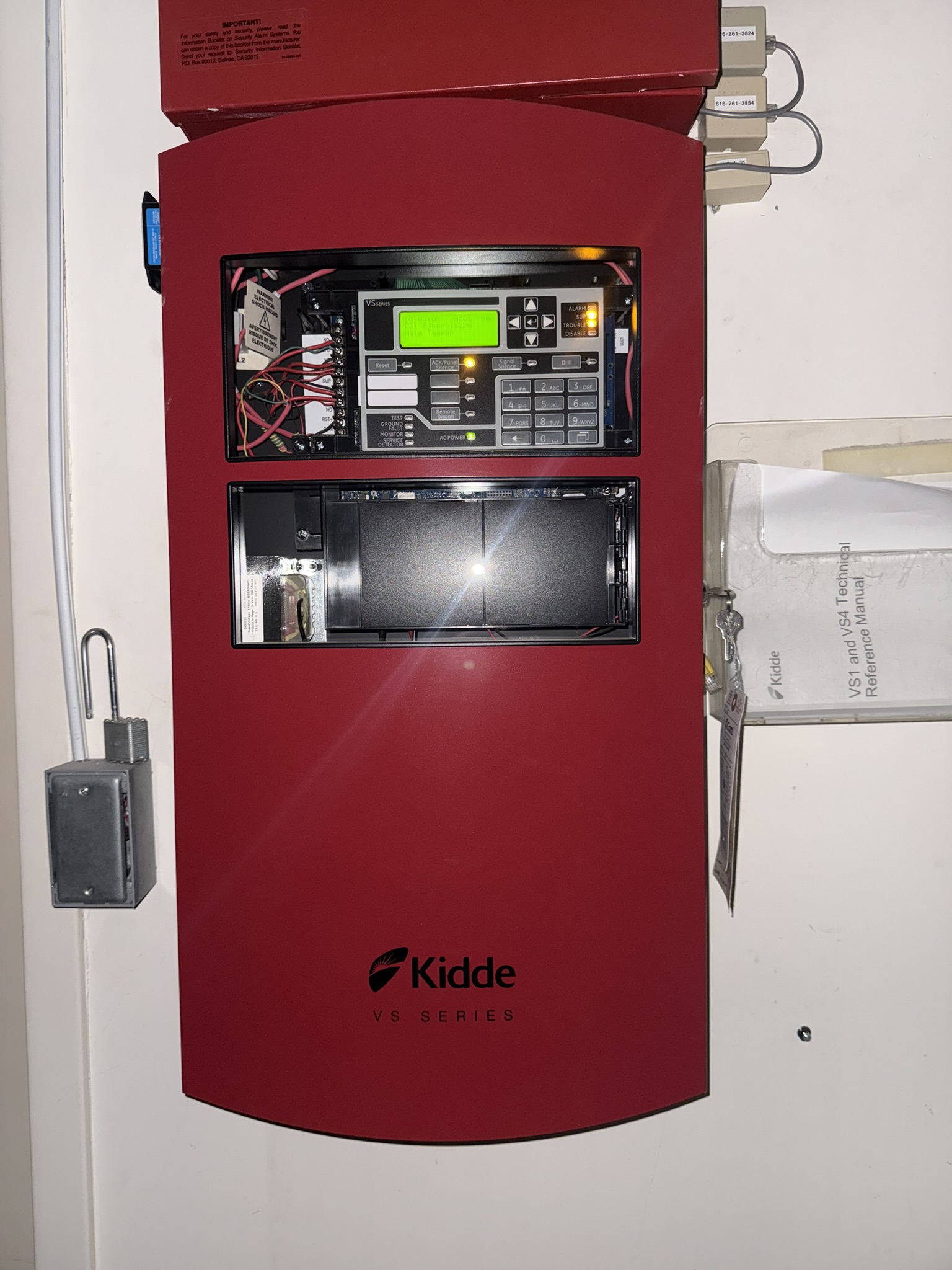

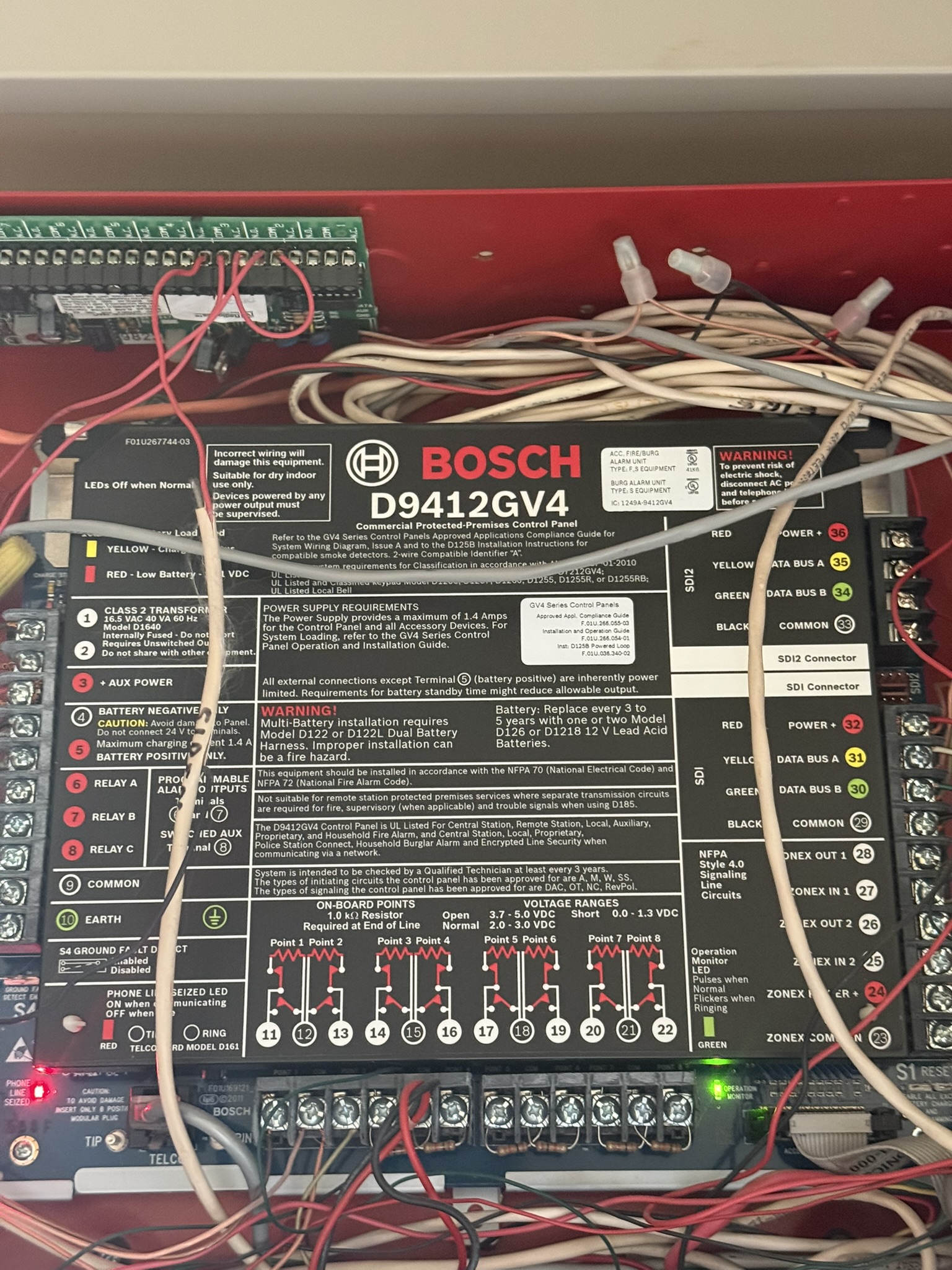

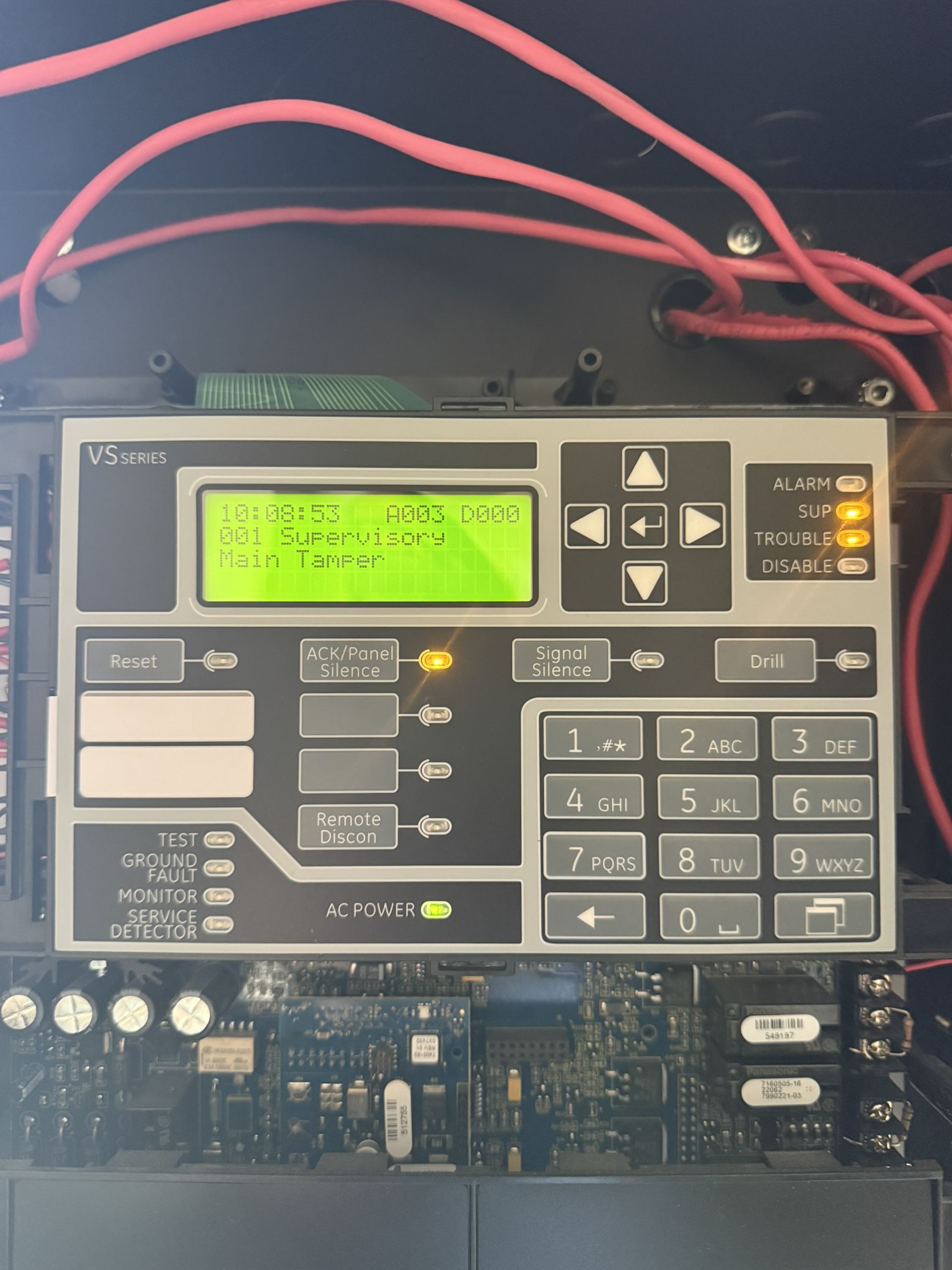

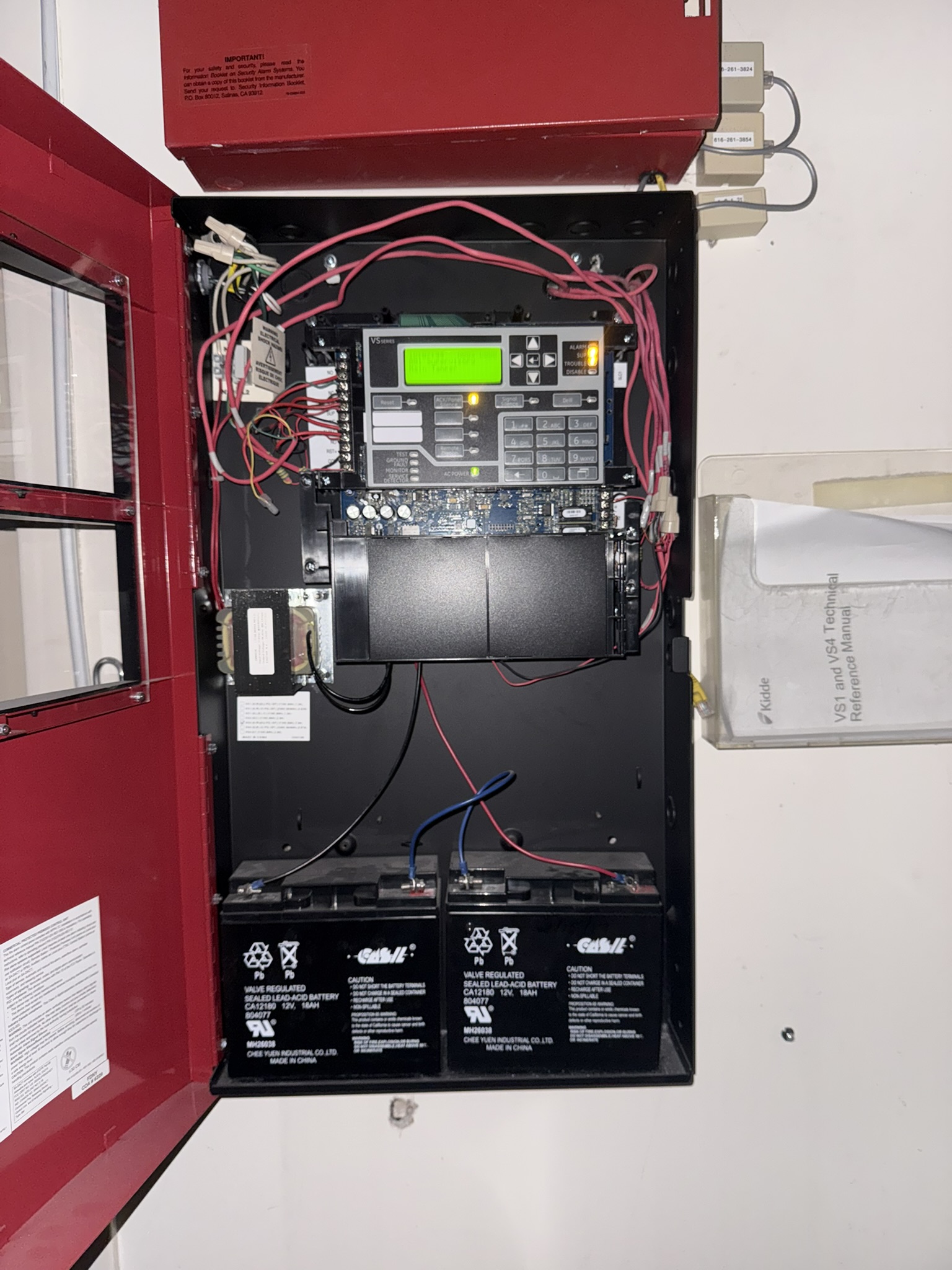

Fire Alarm Panel
Existing fire alarm equipment photo documentation.
Electrical Organization
First floor electrical info: breaker sheet, amperage, panels, closets, locations, and transformers.
Electrical Excel Sheet
Main spreadsheet for breaker / amperage information.
Electrical Closet Goal
- Label each closet location in the building.
- List which panels are in each closet.
- Identify breakers serving 1st floor lighting / tenant areas.
- Track transformers and emergency panels.
| Panel | Type | Closet / Location | Photo |
|---|---|---|---|
| NW Electrical Closet | |||
| L1AA | Lighting Panel | NW Electrical Closet | View |
| EL1A | Emergency Lighting | NW Electrical Closet | View |
| EH1A | Emergency Power | NW Electrical Closet | View |
| DPL1A.2A.2C.2 | Distribution Panel | NW Electrical Closet | View |

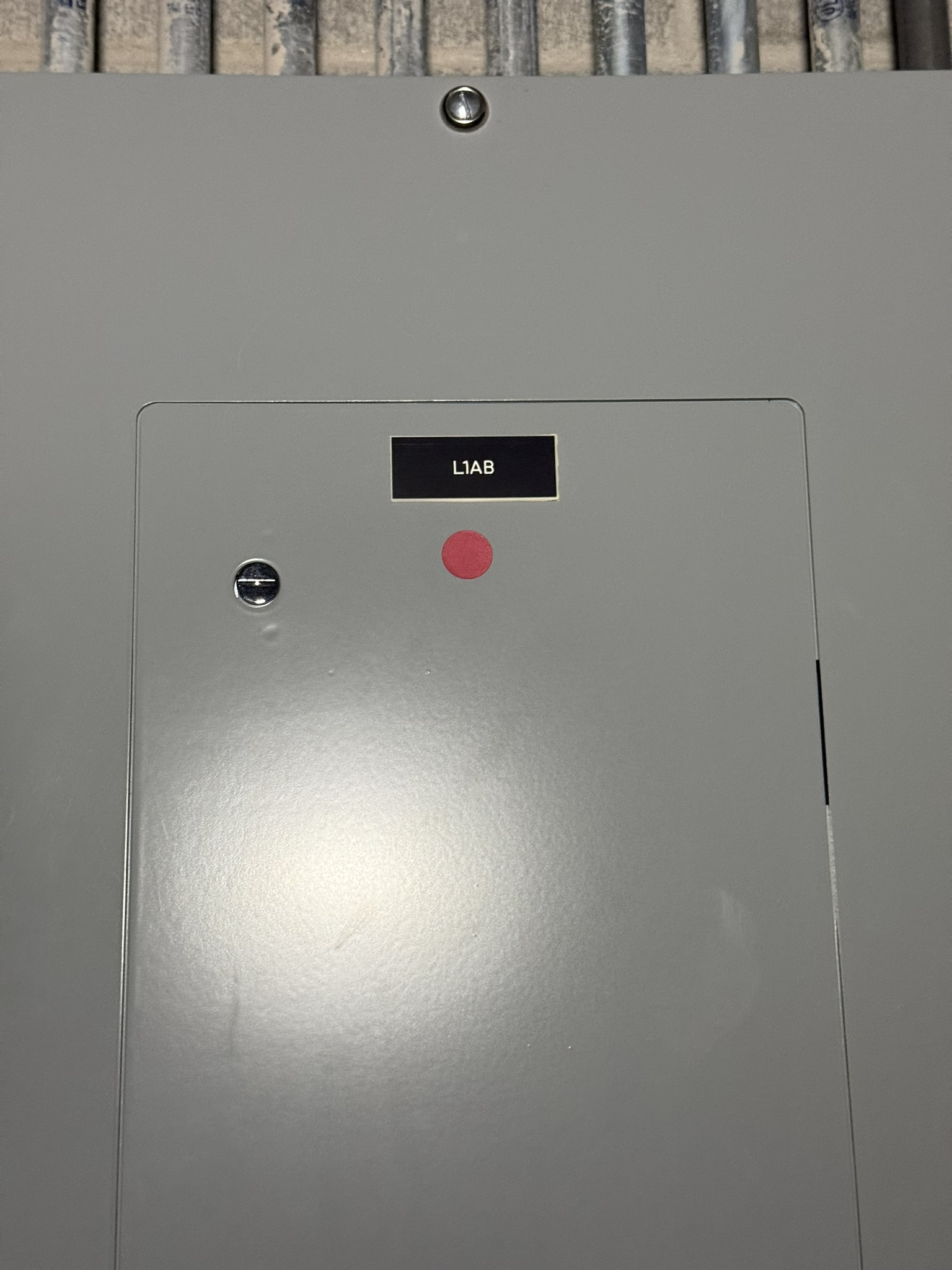

| L1AB | Lighting Panel | NW Electrical Closet | View |
| L1AG | Lighting Panel | NW Electrical Closet | View |

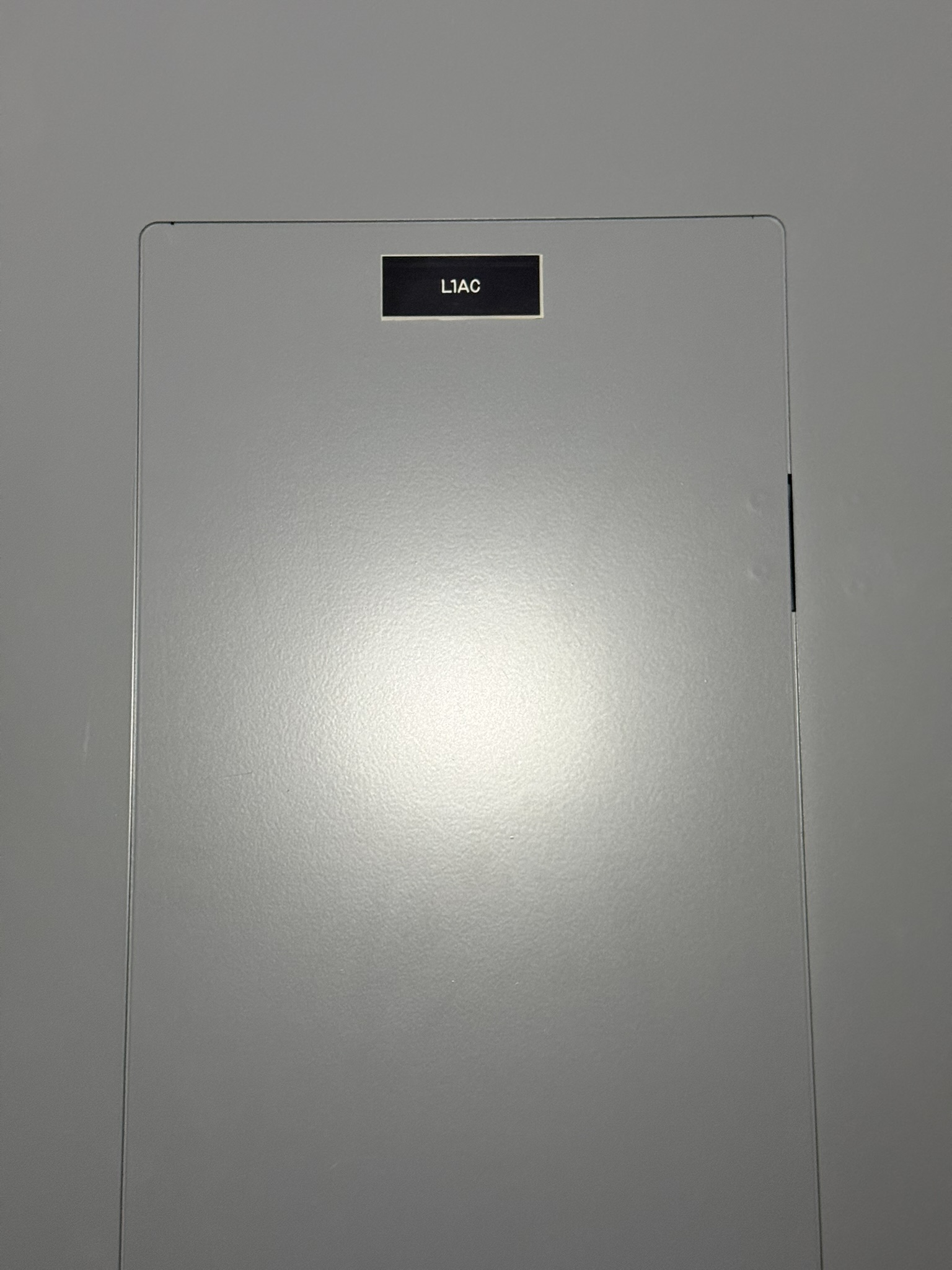

| L1AC | Lighting Panel | NW Electrical Closet | View |
| H1A | Heat Panel | NW Electrical Closet | View |
| SW Electrical Closet | |||
| L1BA | Lighting Panel | SW Electrical Closet | View |
| EL1B | Emergency Lighting | SW Electrical Closet | View |
| EH1B | Emergency Power | SW Electrical Closet | View |

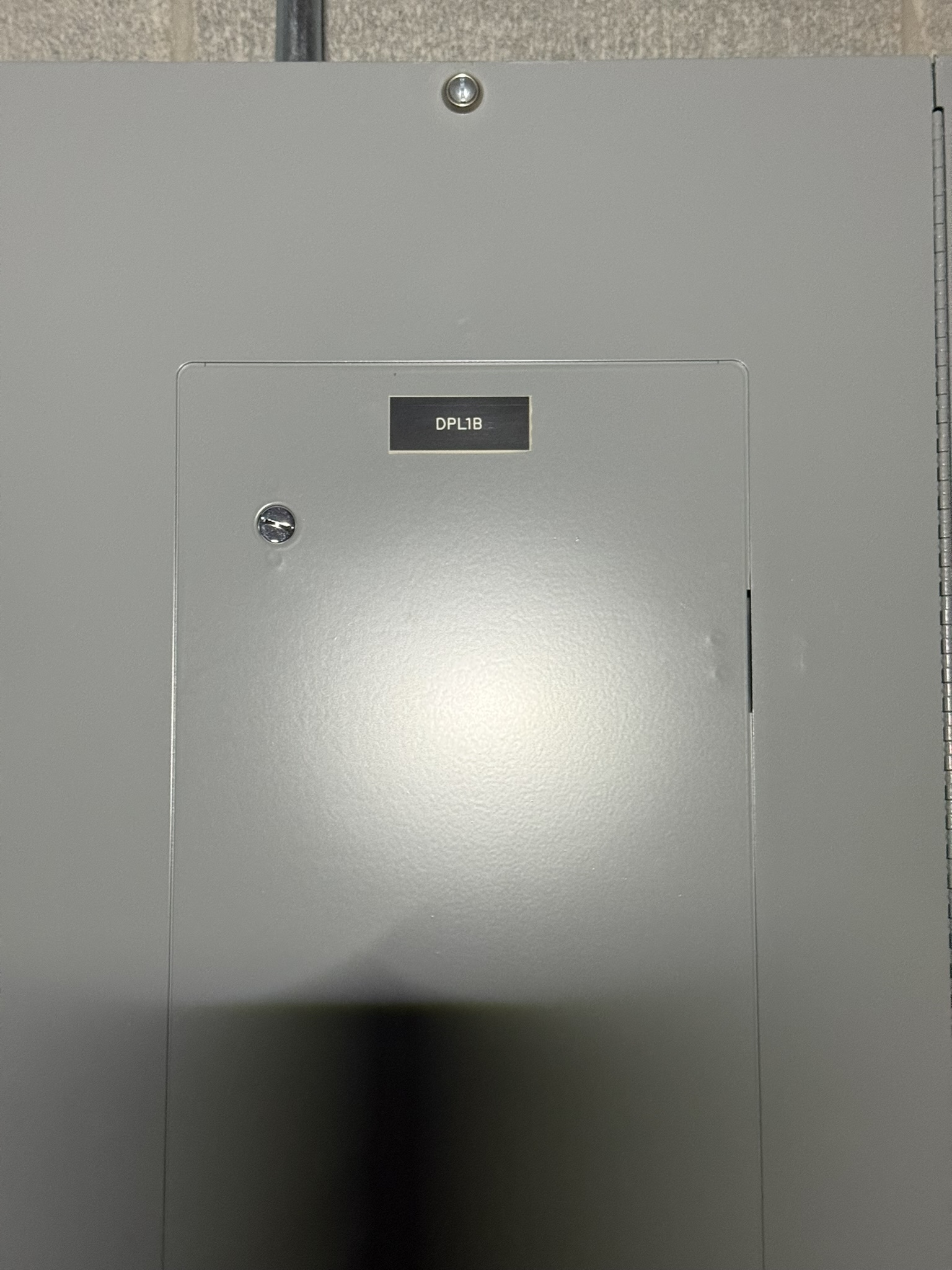

| DPL1B | Distribution Panel | SW Electrical Closet | View |
| H1B | Heat Panel | SW Electrical Closet | View |
| NE Electrical Closet | |||

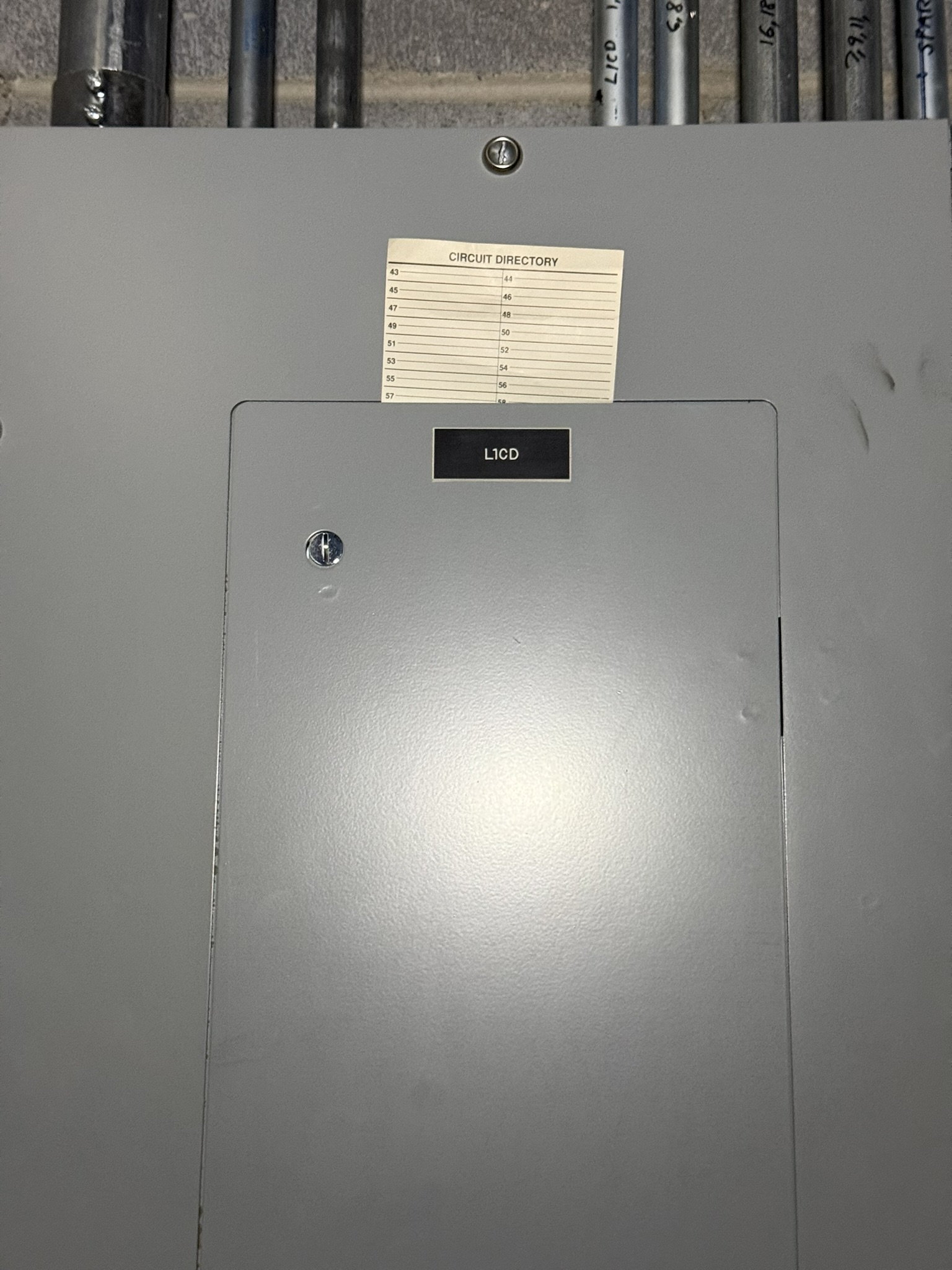

| L1CD | Lighting Panel | NE Electrical Closet | View |
| L1CE | Lighting Panel | NE Electrical Closet | View |
| H1C | Heat Panel | NE Electrical Closet | View |
| EL1C | Emergency Power | NE Electrical Closet | View |

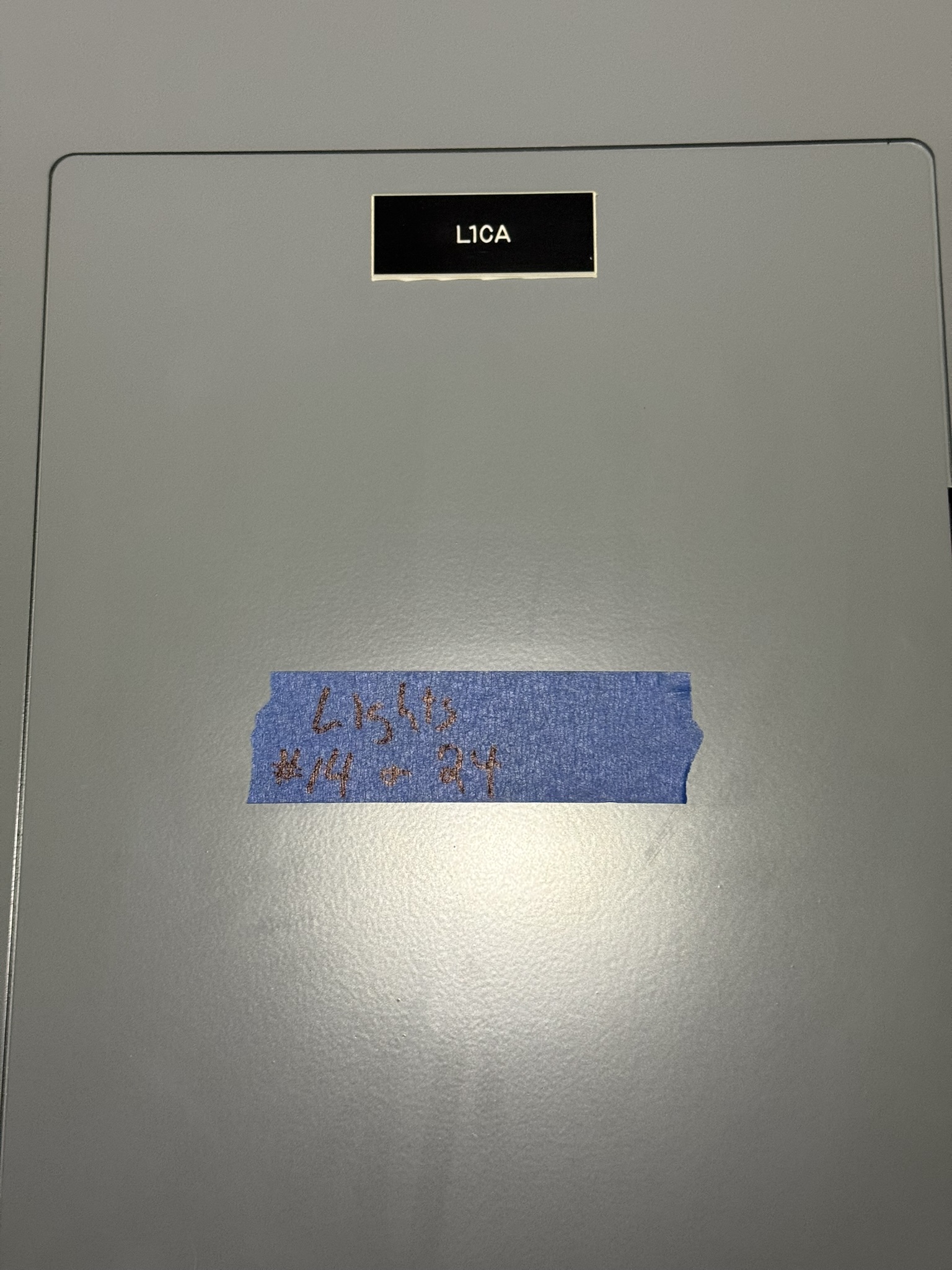

| L1CA | Lighting Panel | NE Electrical Closet | View |
| L1CB | Lighting Panel | NE Electrical Closet | View |
| DPL1C | Distribution Panel | NE Electrical Closet | View |

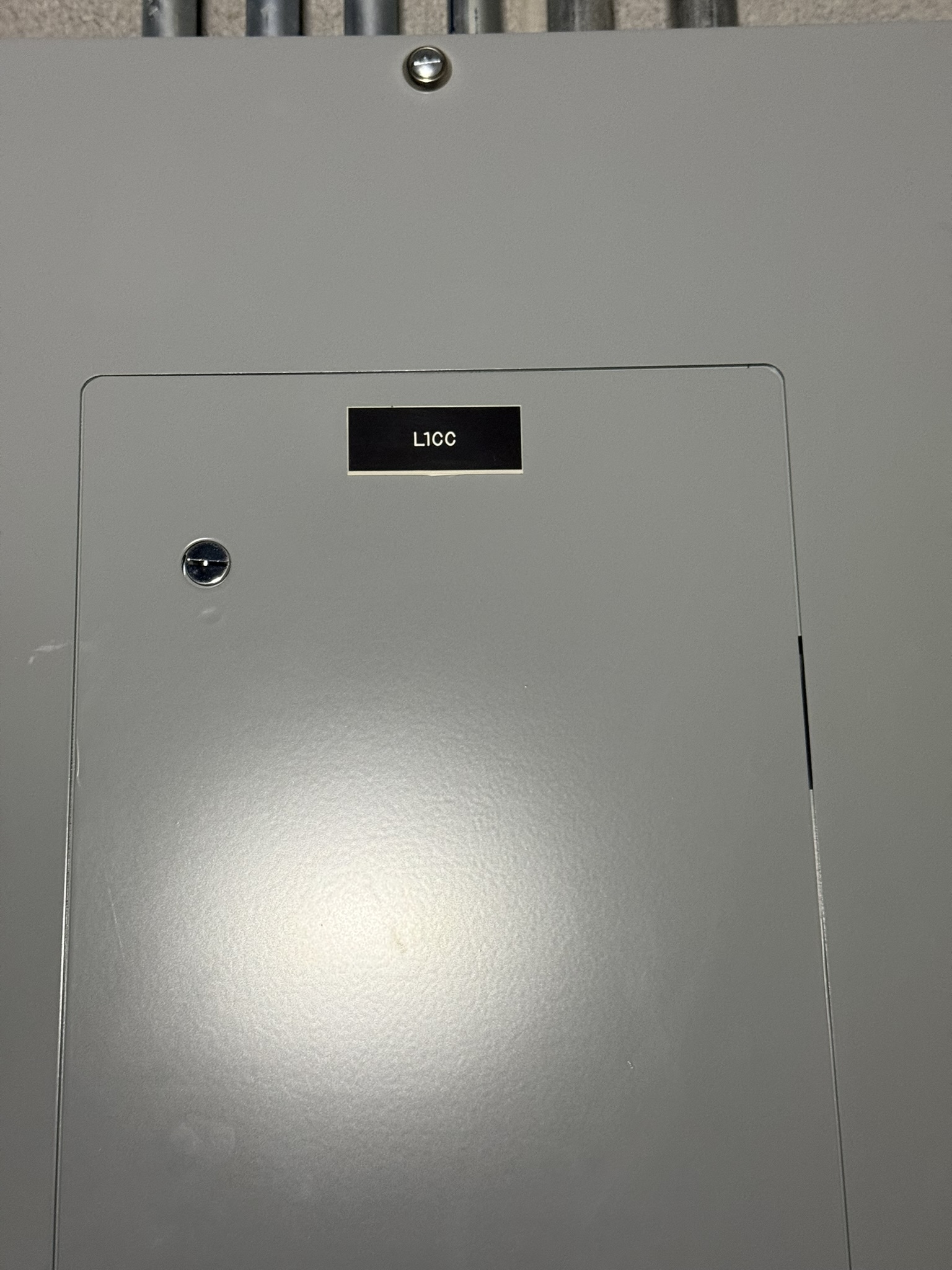

| L1CC | Lighting Panel | NE Electrical Closet | View |
| SE Electrical Closet | |||
| L1DA | Lighting Panel | SE Electrical Closet | View |
| L1DB | Lighting Panel | SE Electrical Closet | View |

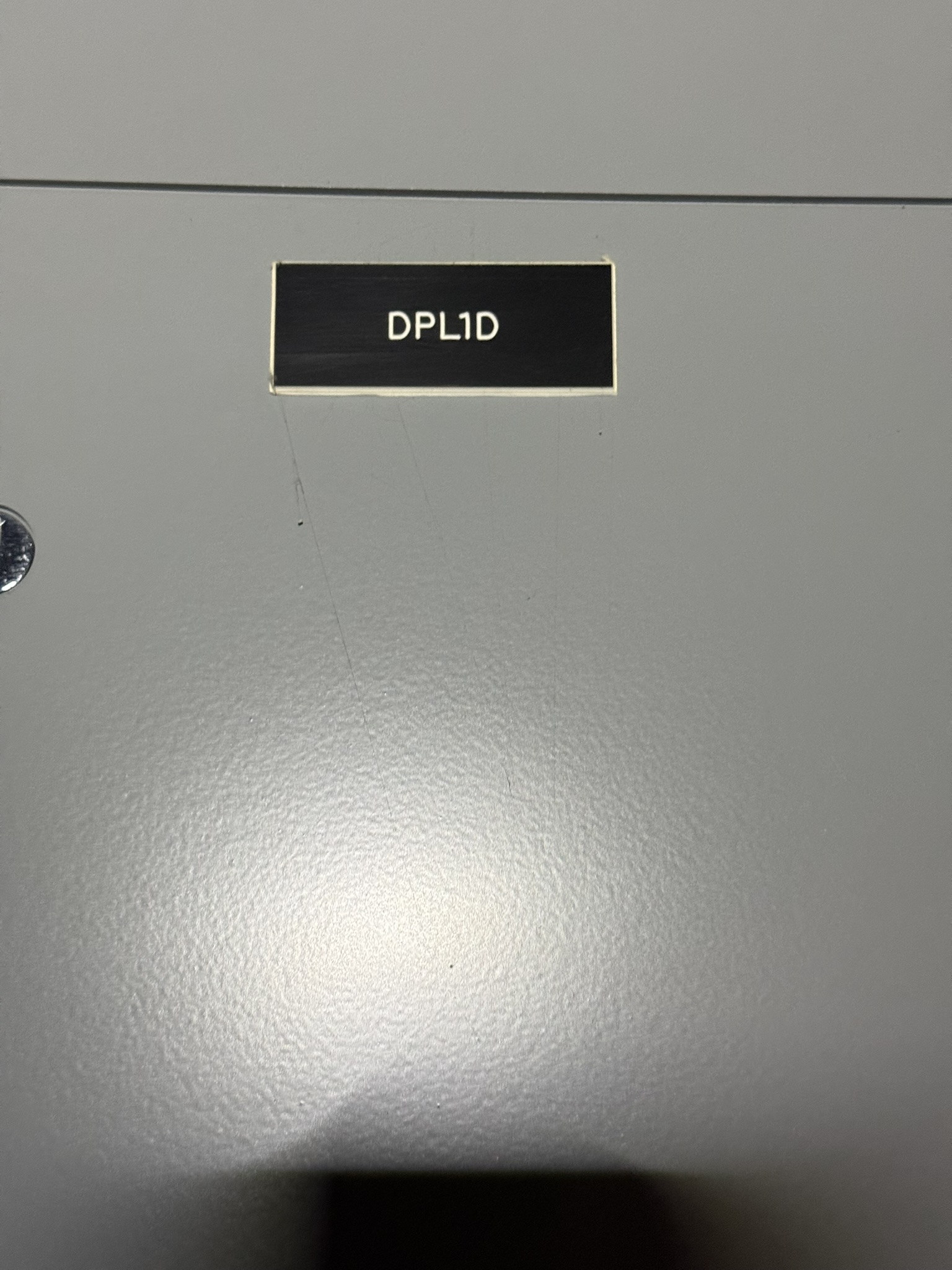

| DPL1D | Distribution Panel | SE Electrical Closet | View |
| H1D | Heat Panel | SE Electrical Closet | View |
| L1BS | Lighting Panel | SE Electrical Closet | View |
| Main Power Room | |||

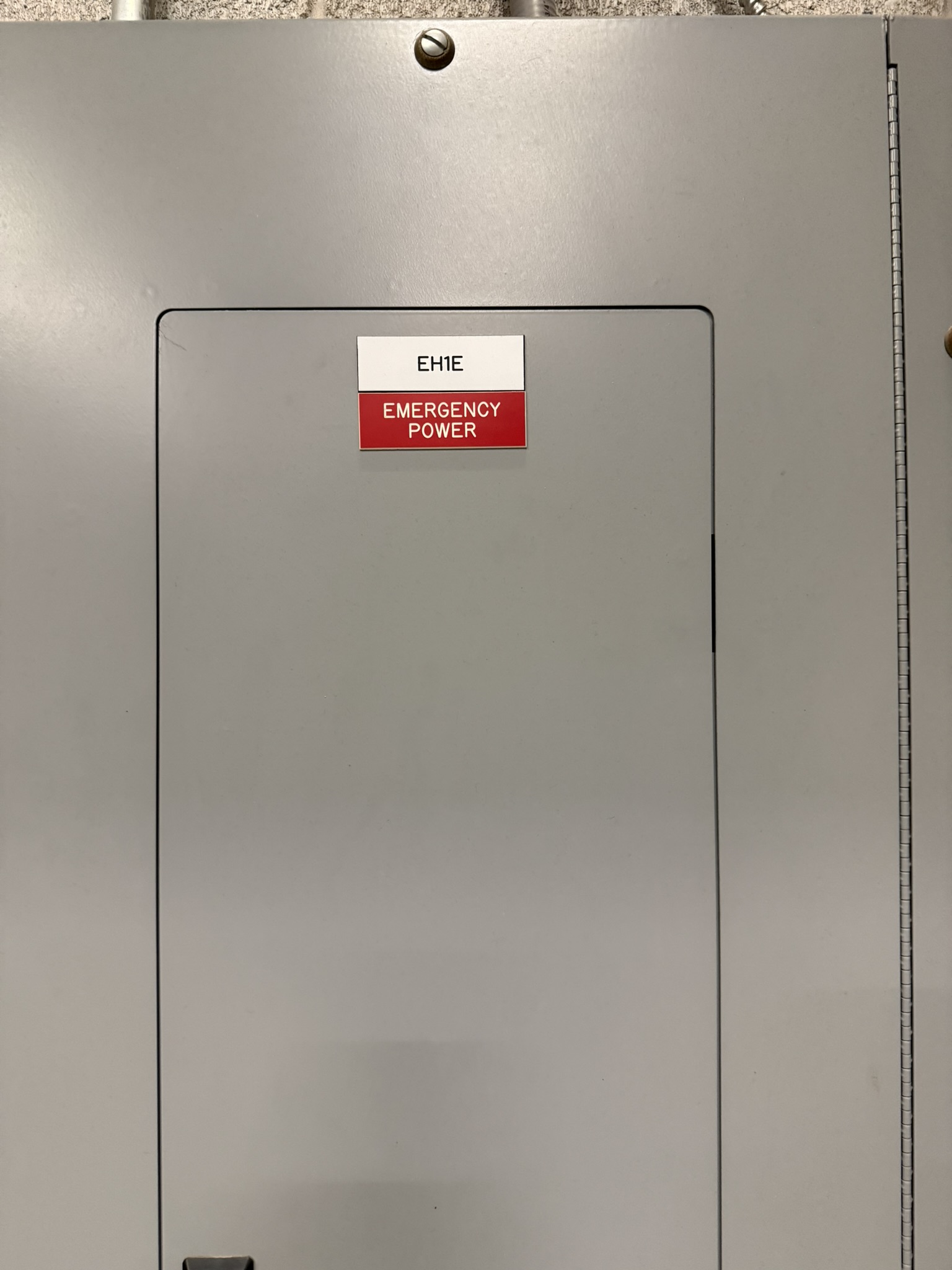

| EH1E | Emergency Power | Main Power Room | View |
| EL1E | Emergency Power | Main Power Room | View |
| H1E | Heat Panel | Main Power Room | View |

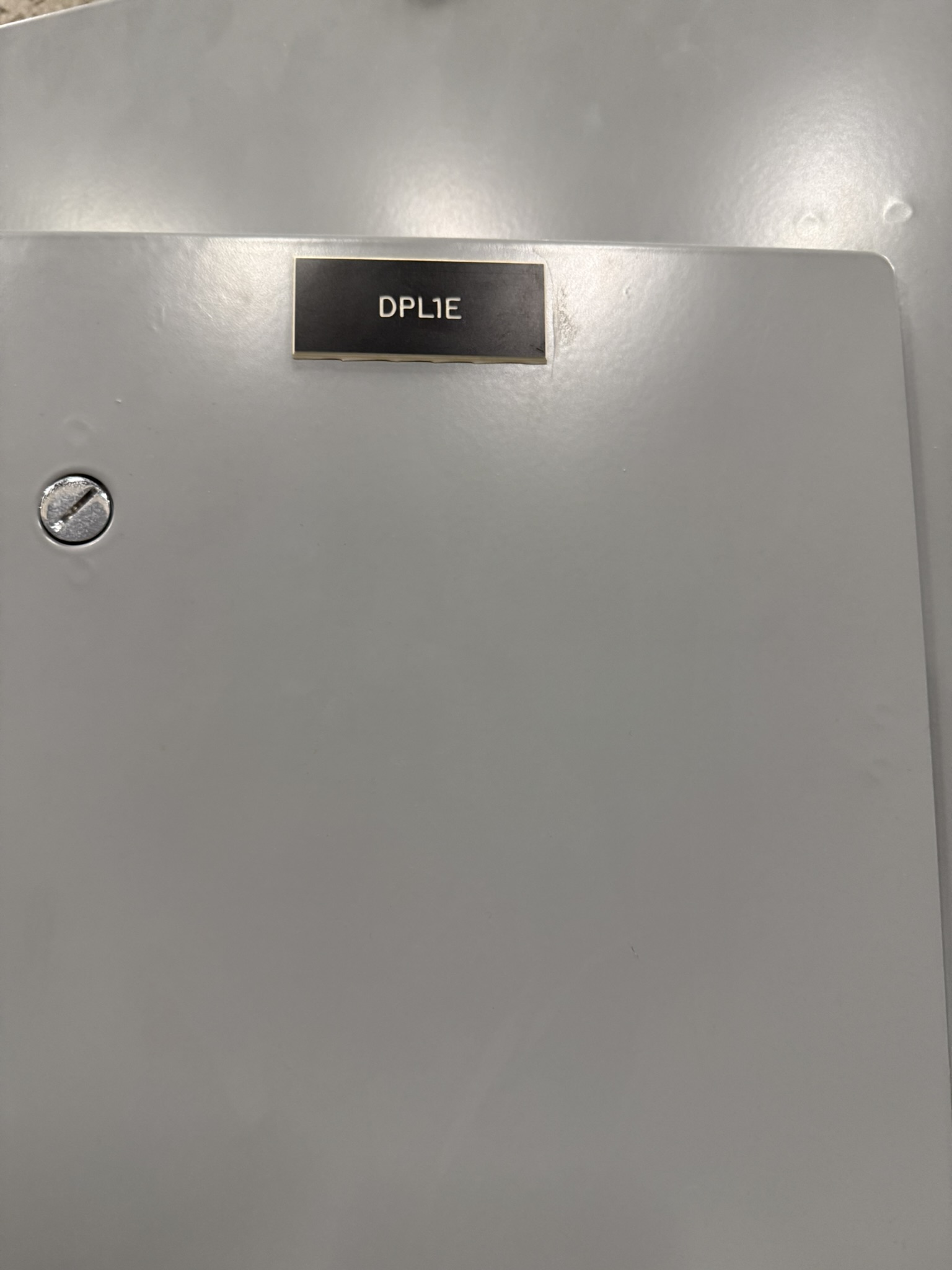

| DPL1E | Distribution Panel | Main Power Room | View |

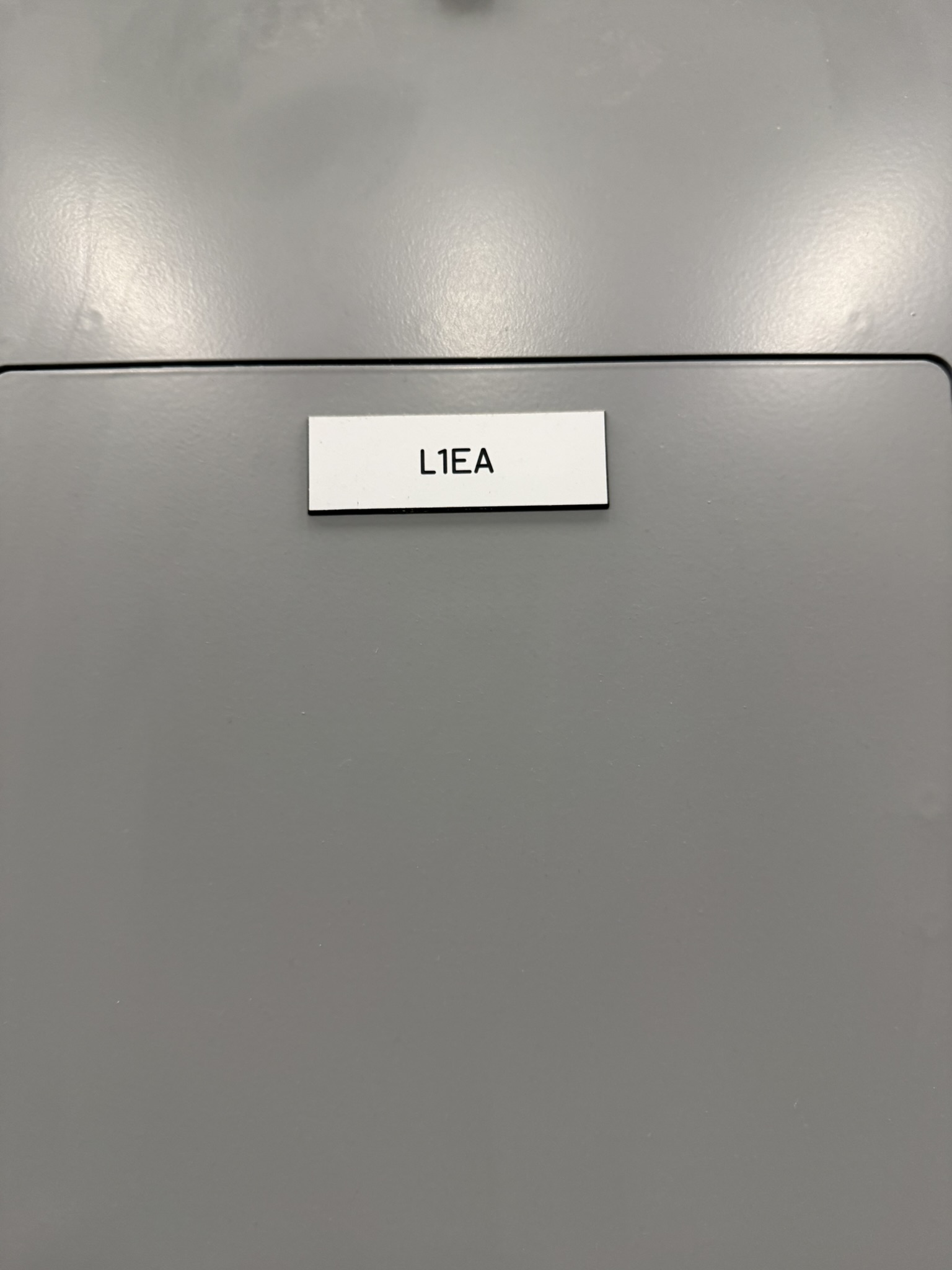

| L1EA | Lighting Panel | Main Power Room | View |
Lower Level Electrical Panel Photo Index

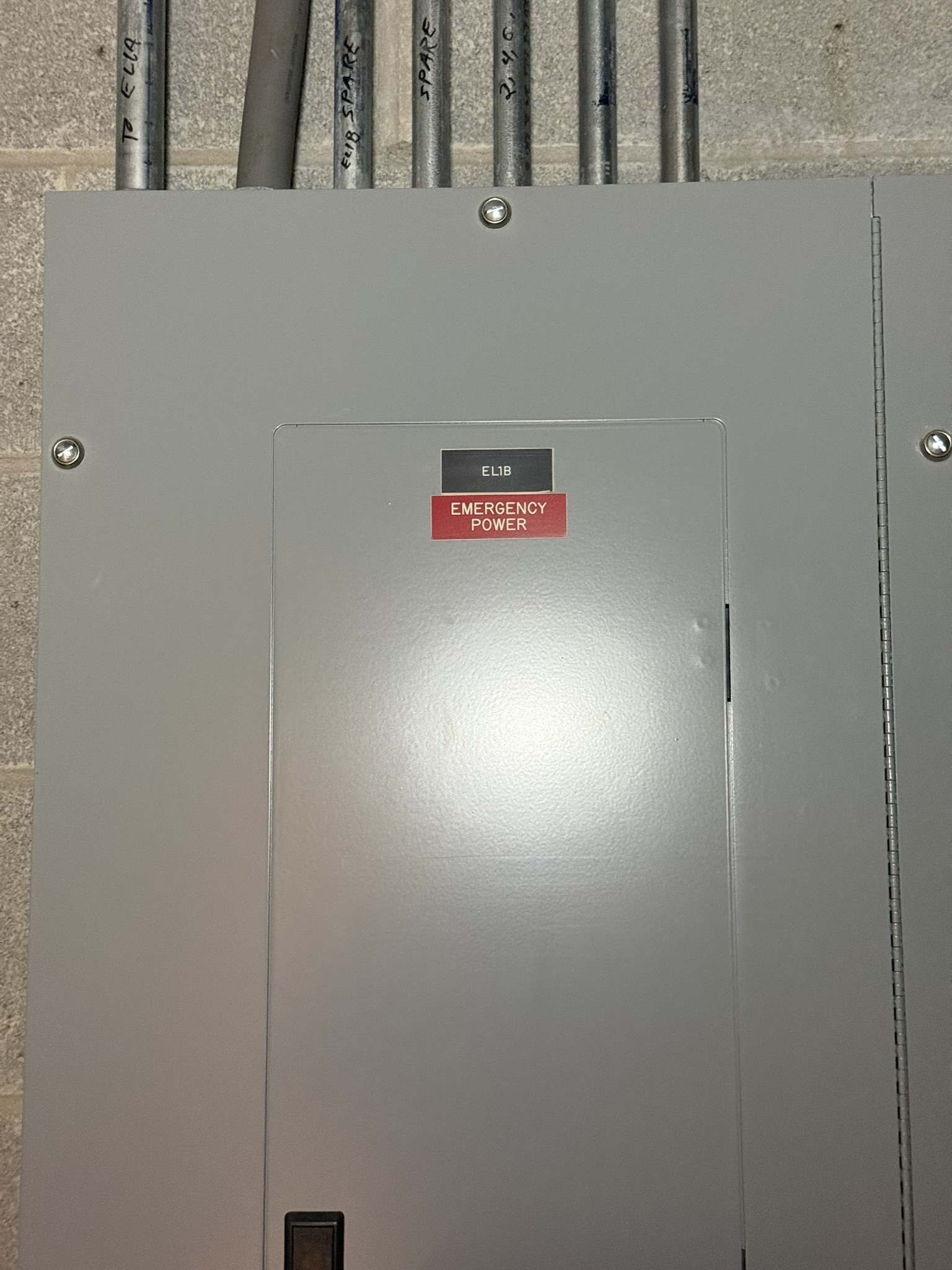

EL1B

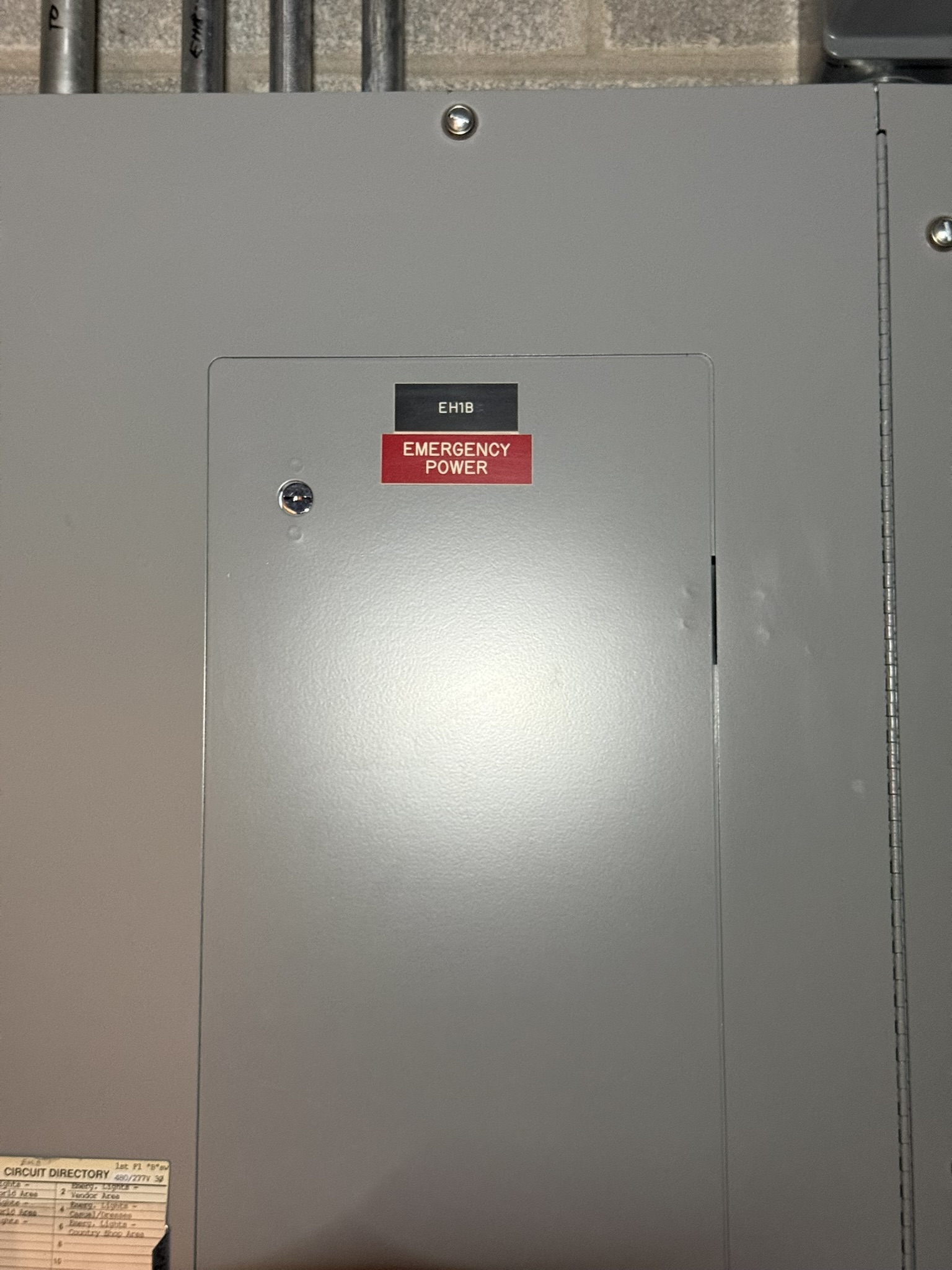

EH1B

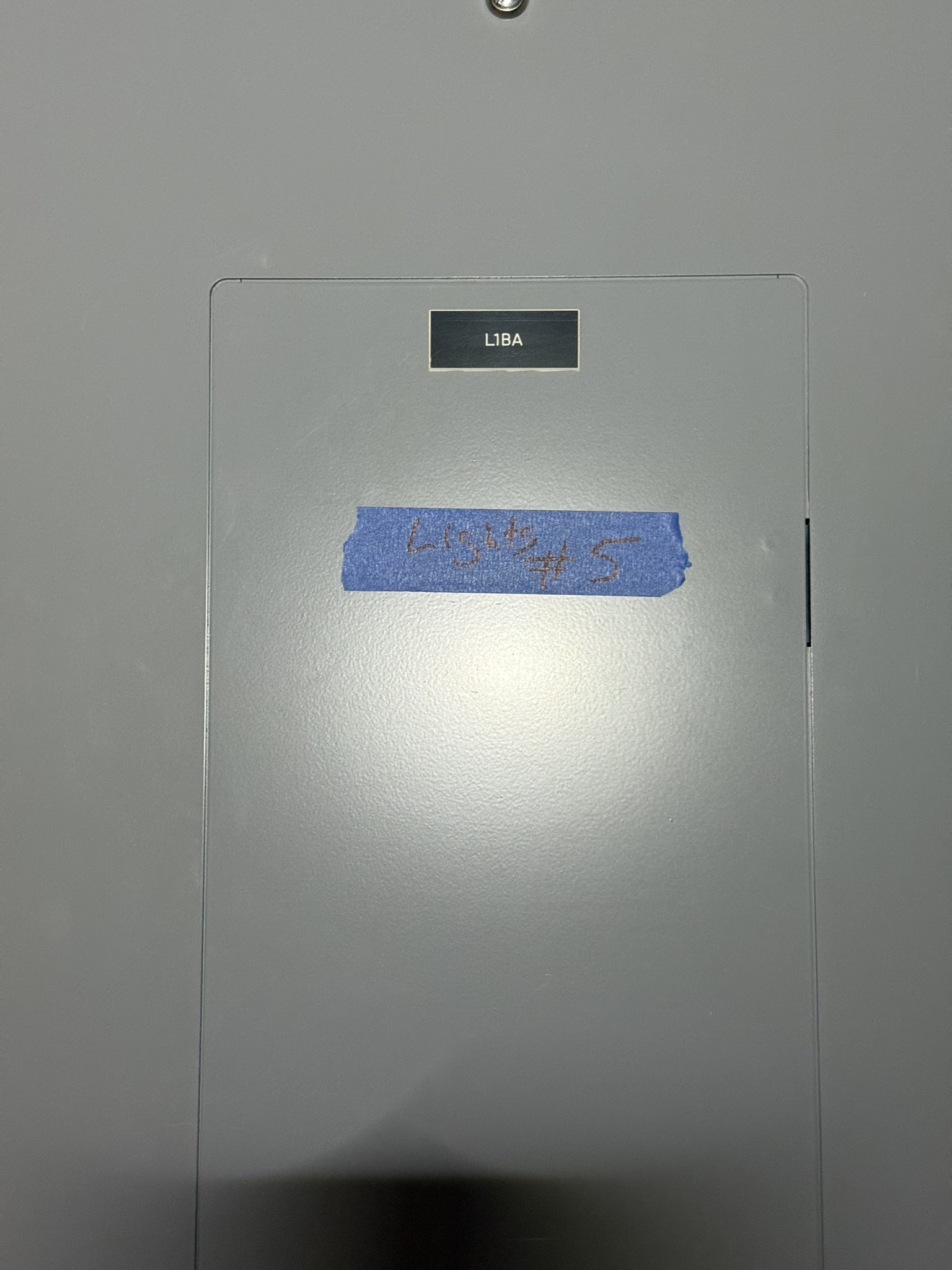

L1BA

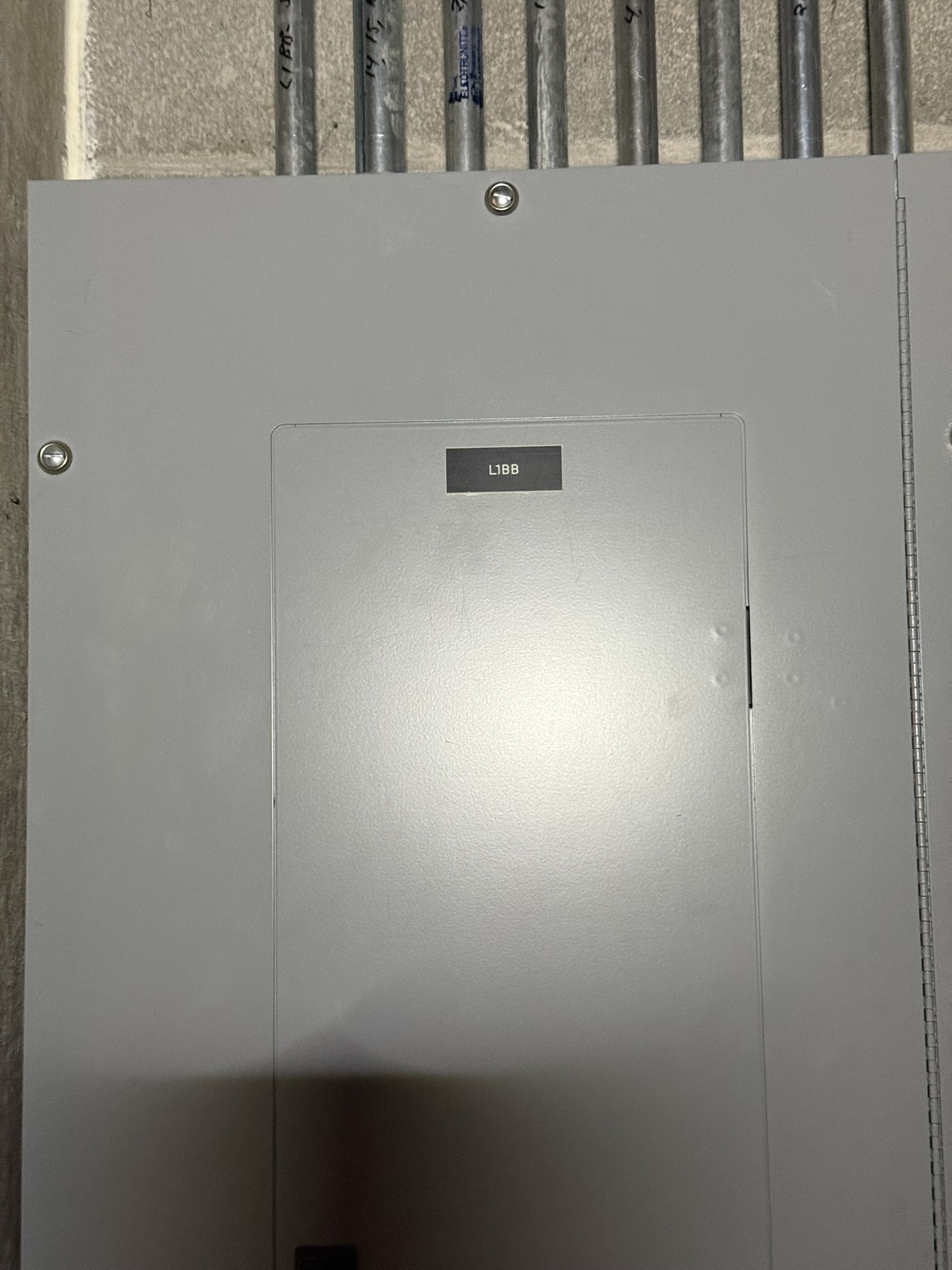

L1BB

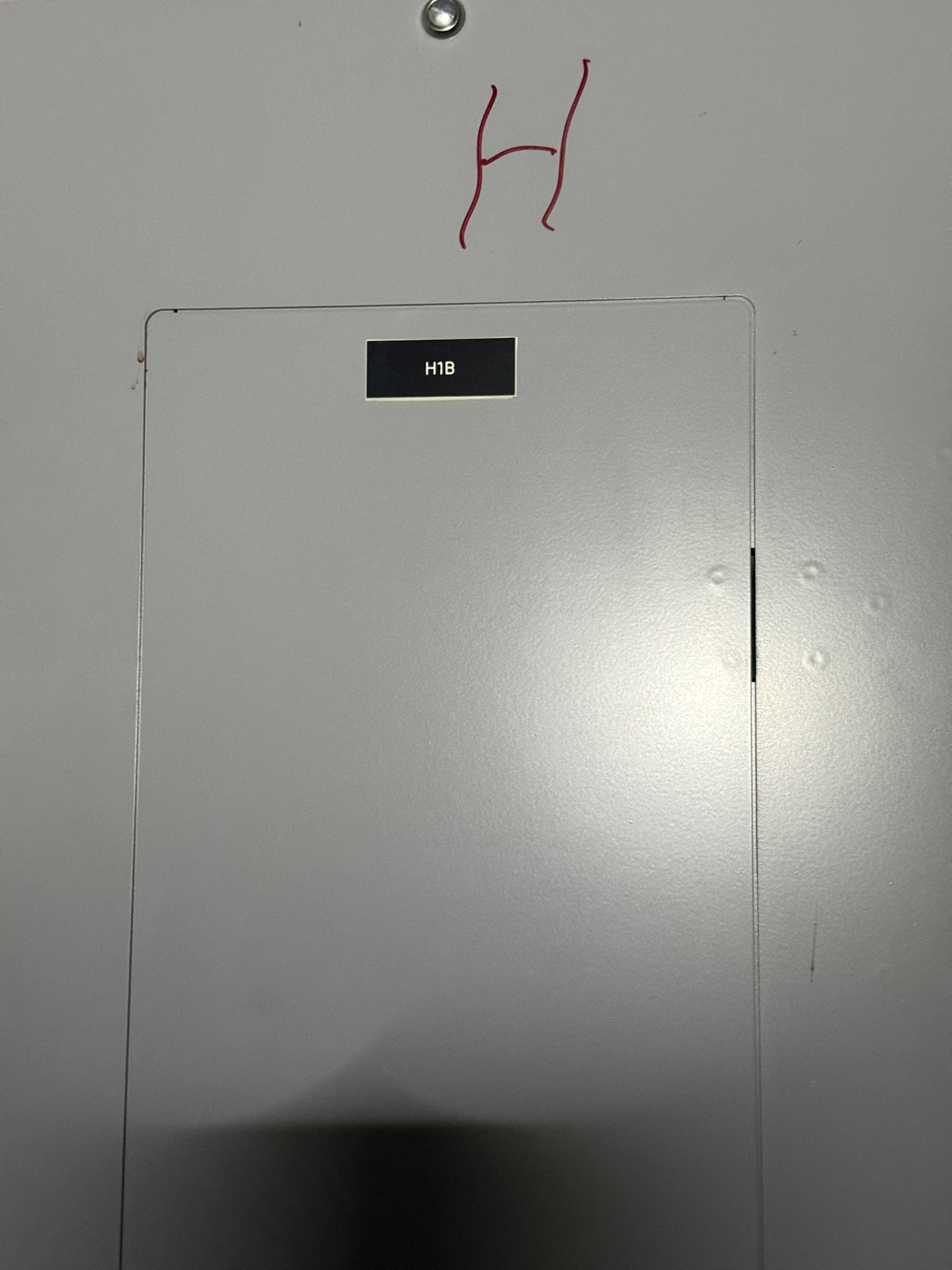

H1B
DPL1B

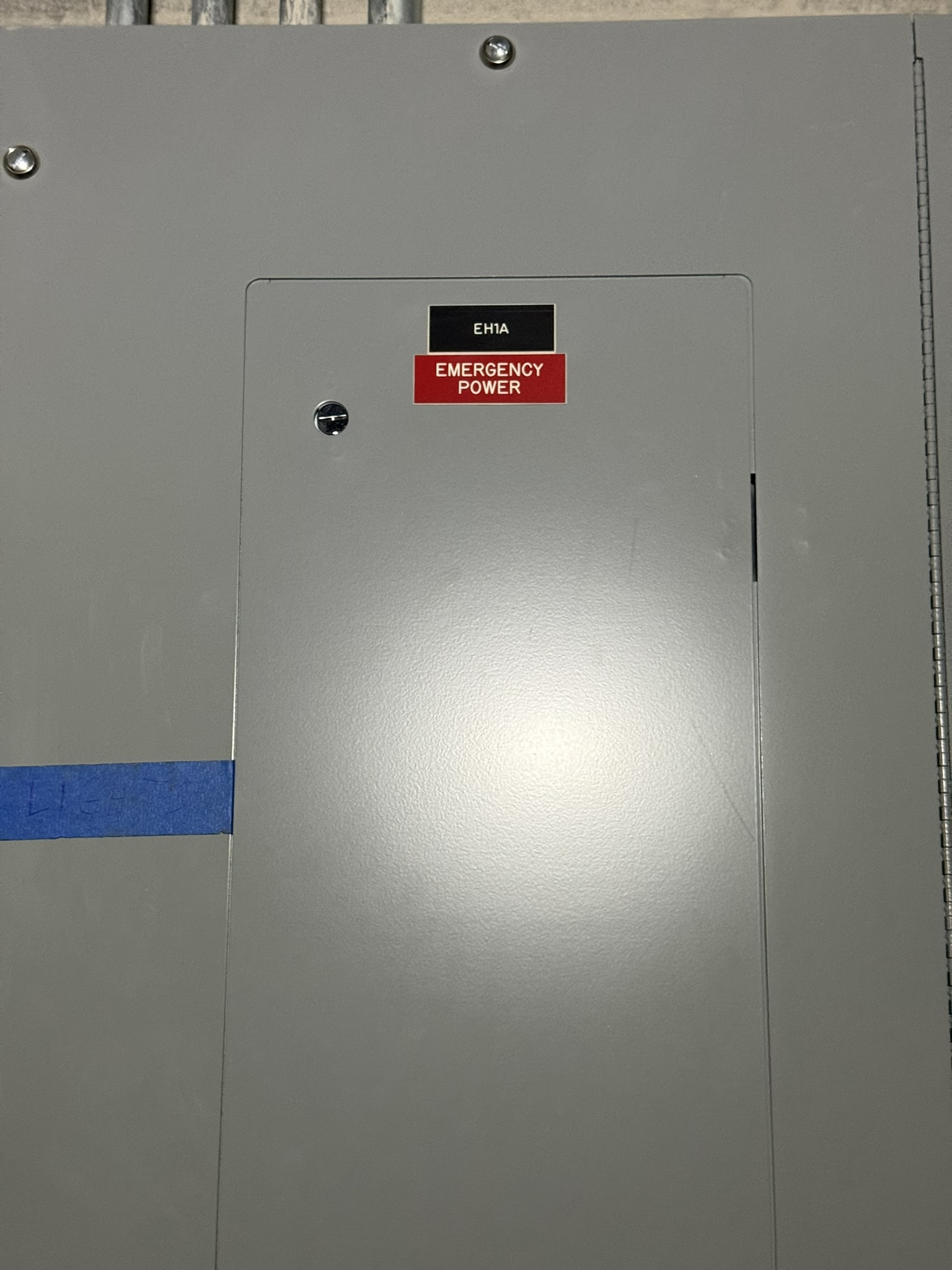

EH1A

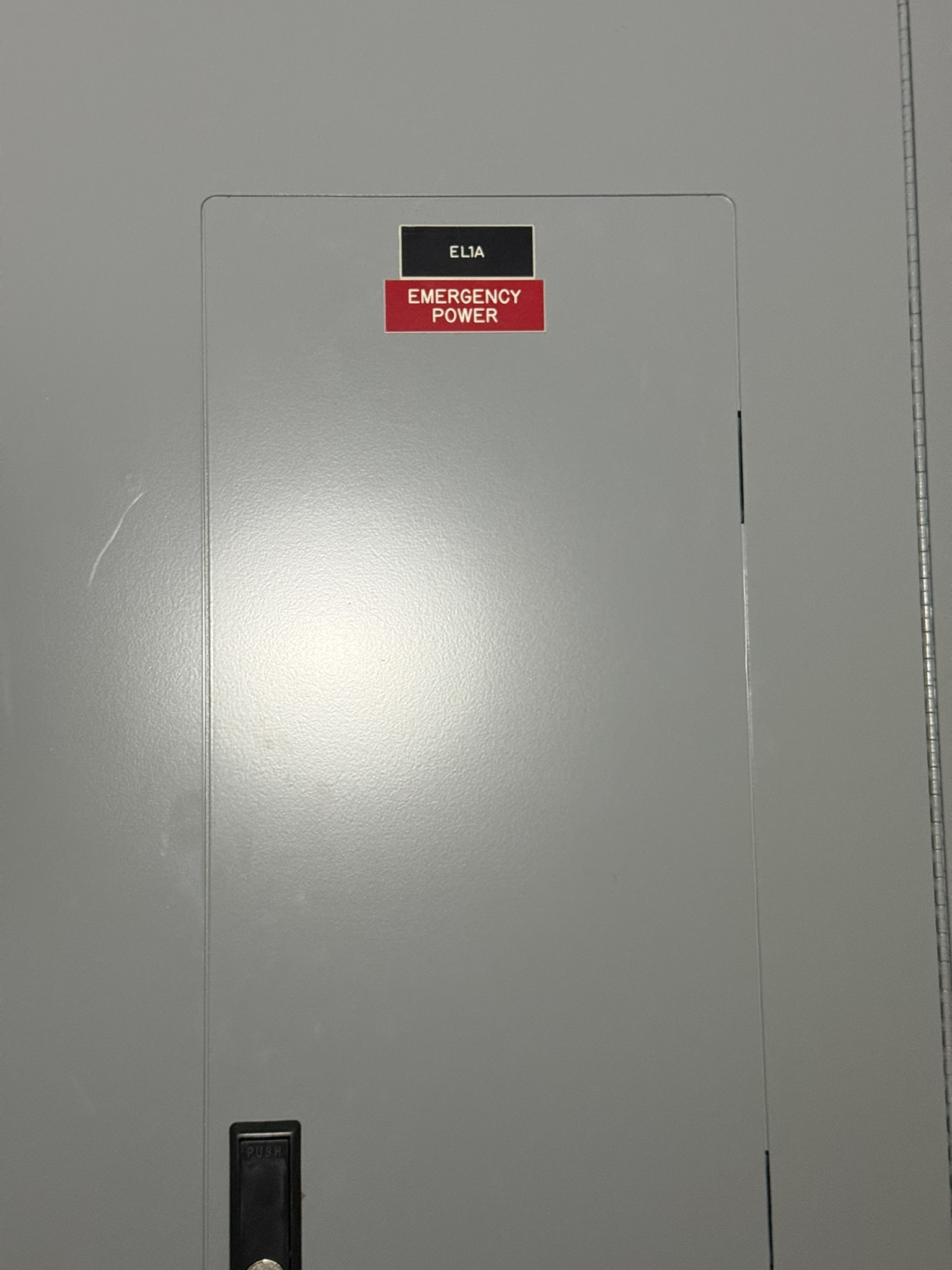

EL1A

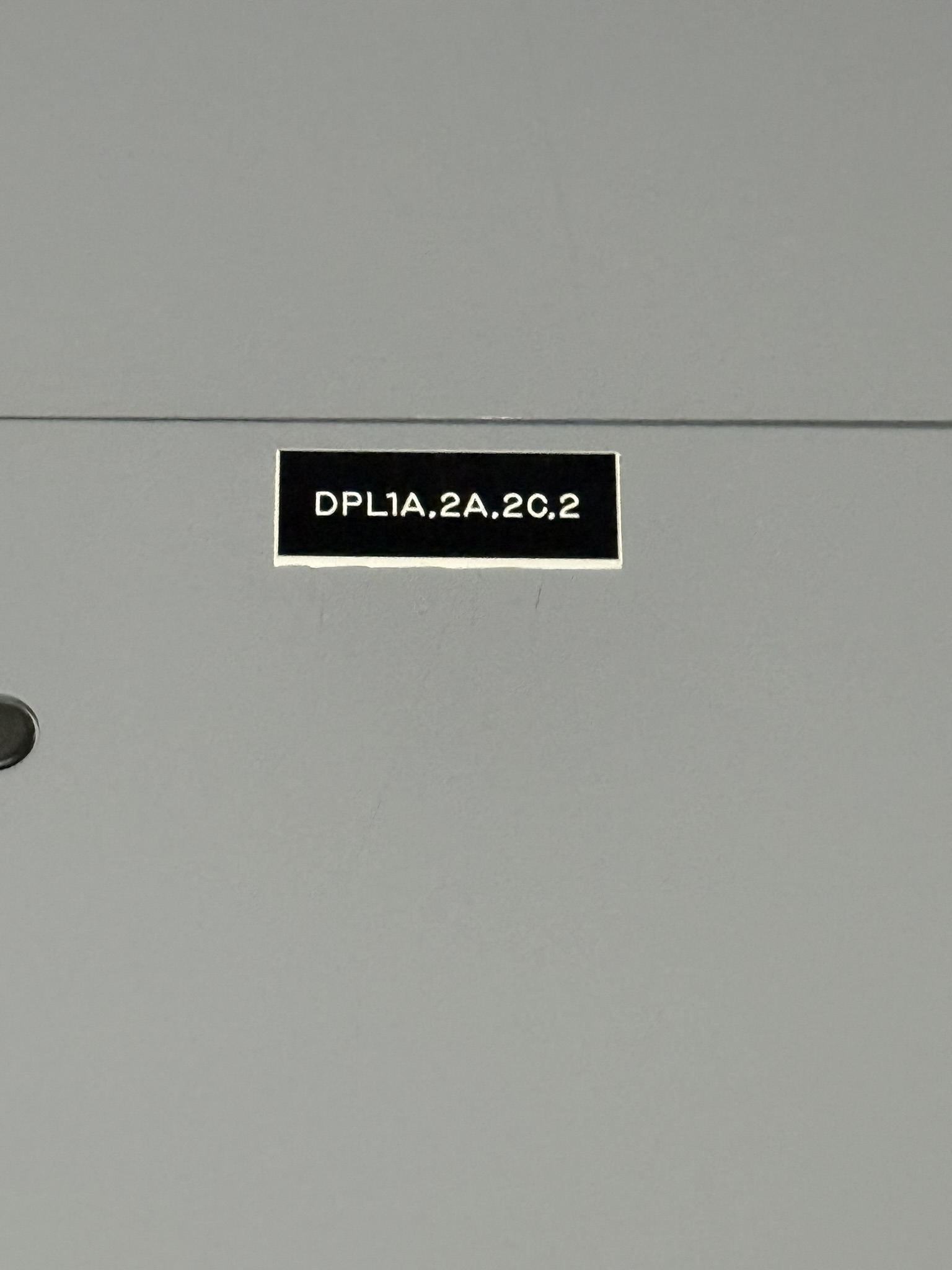

DPL1A,2A,2C,2
L1AA
L1DA
L1AB

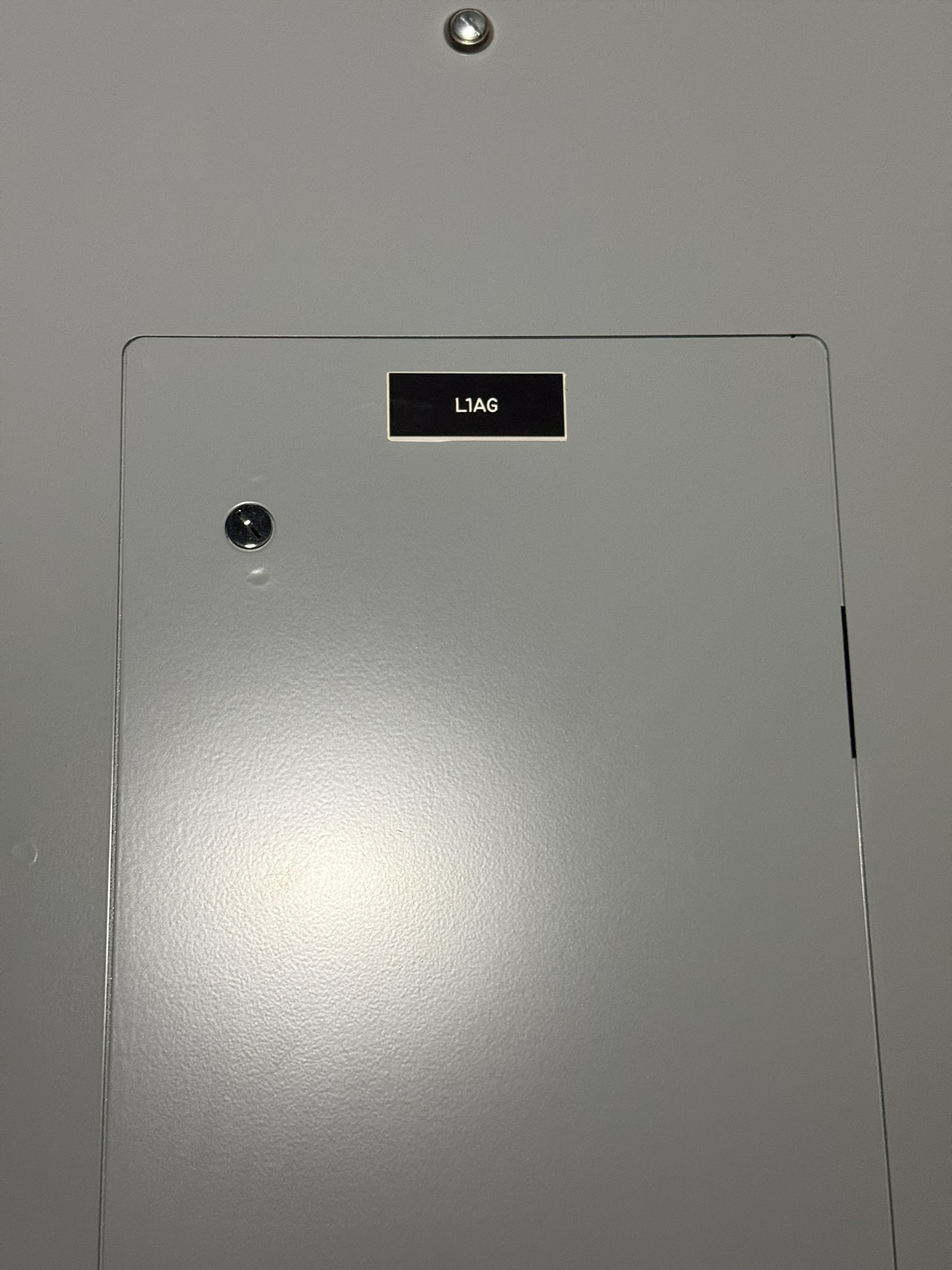

L1AG
L1AC
H1A
L1CD
L1CE

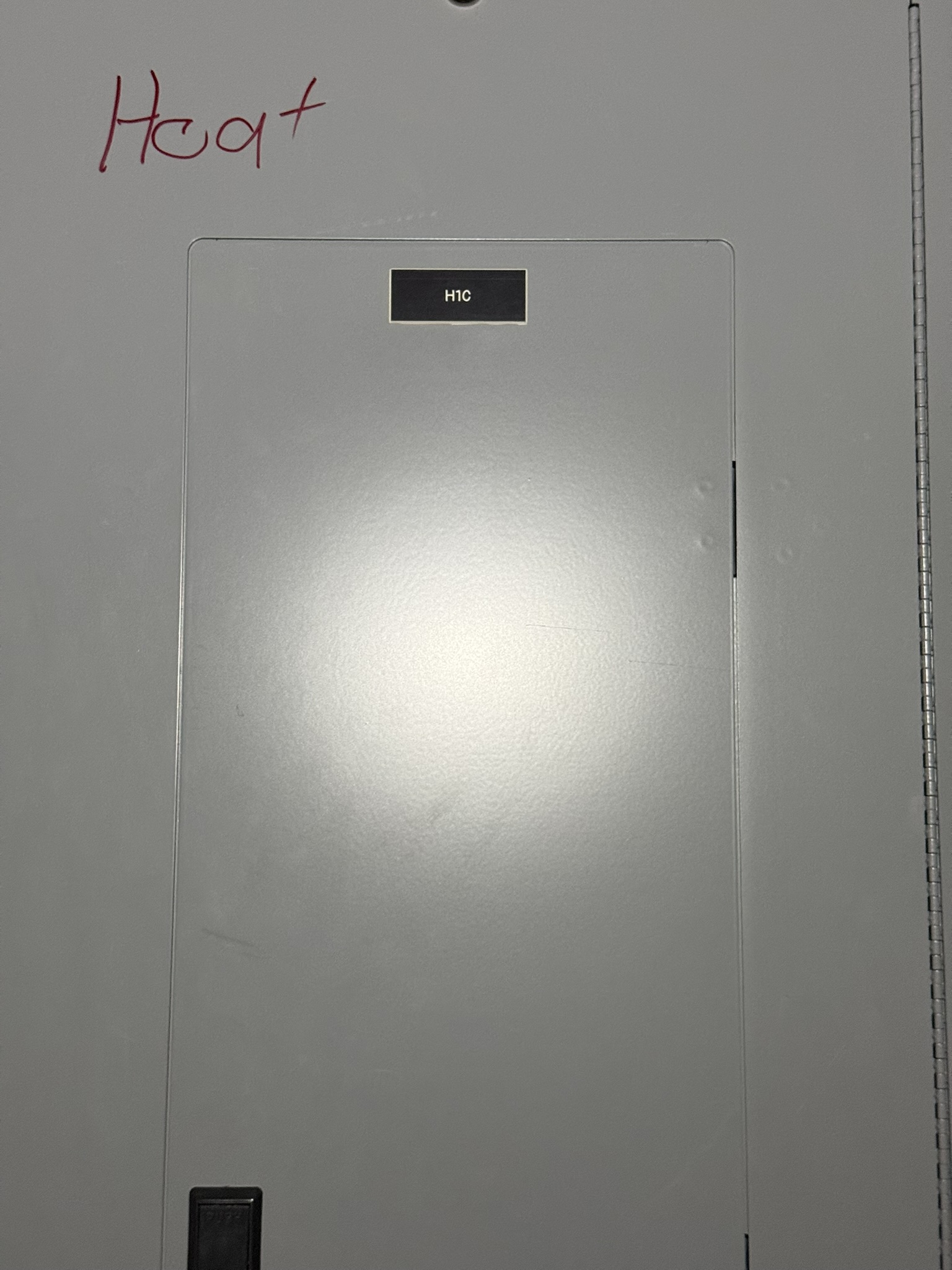

H1C

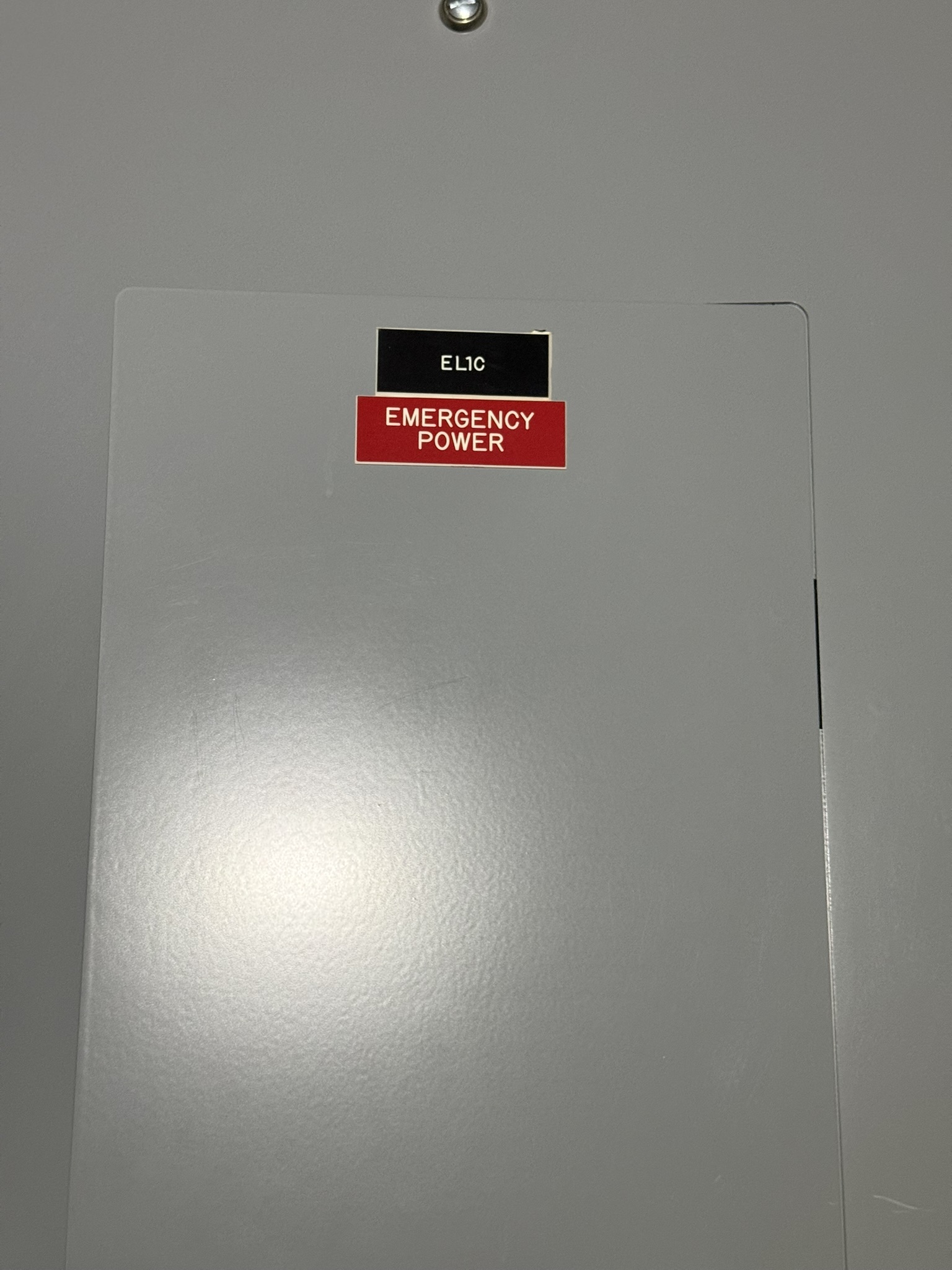

EL1C
L1CA

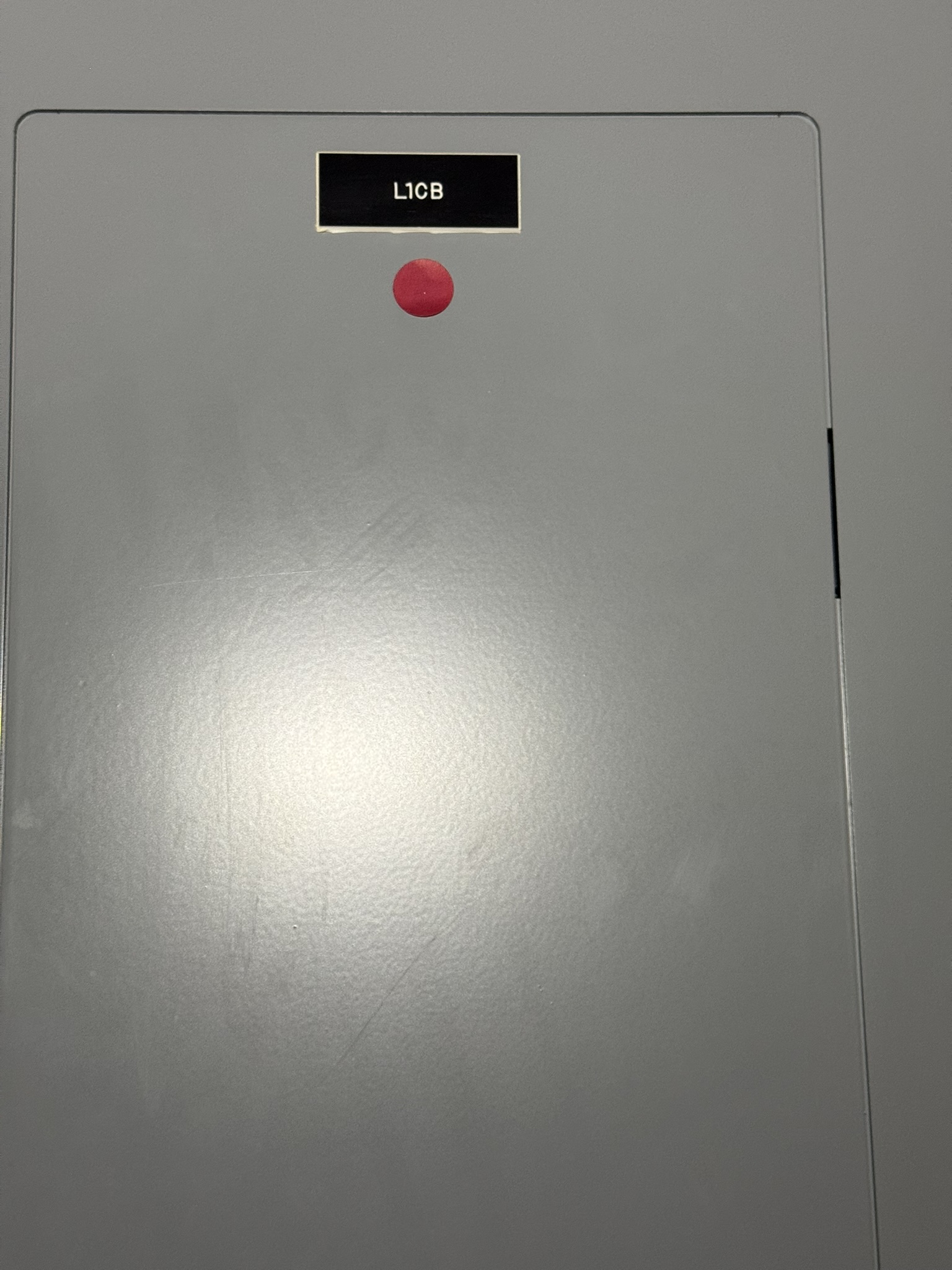

L1CB

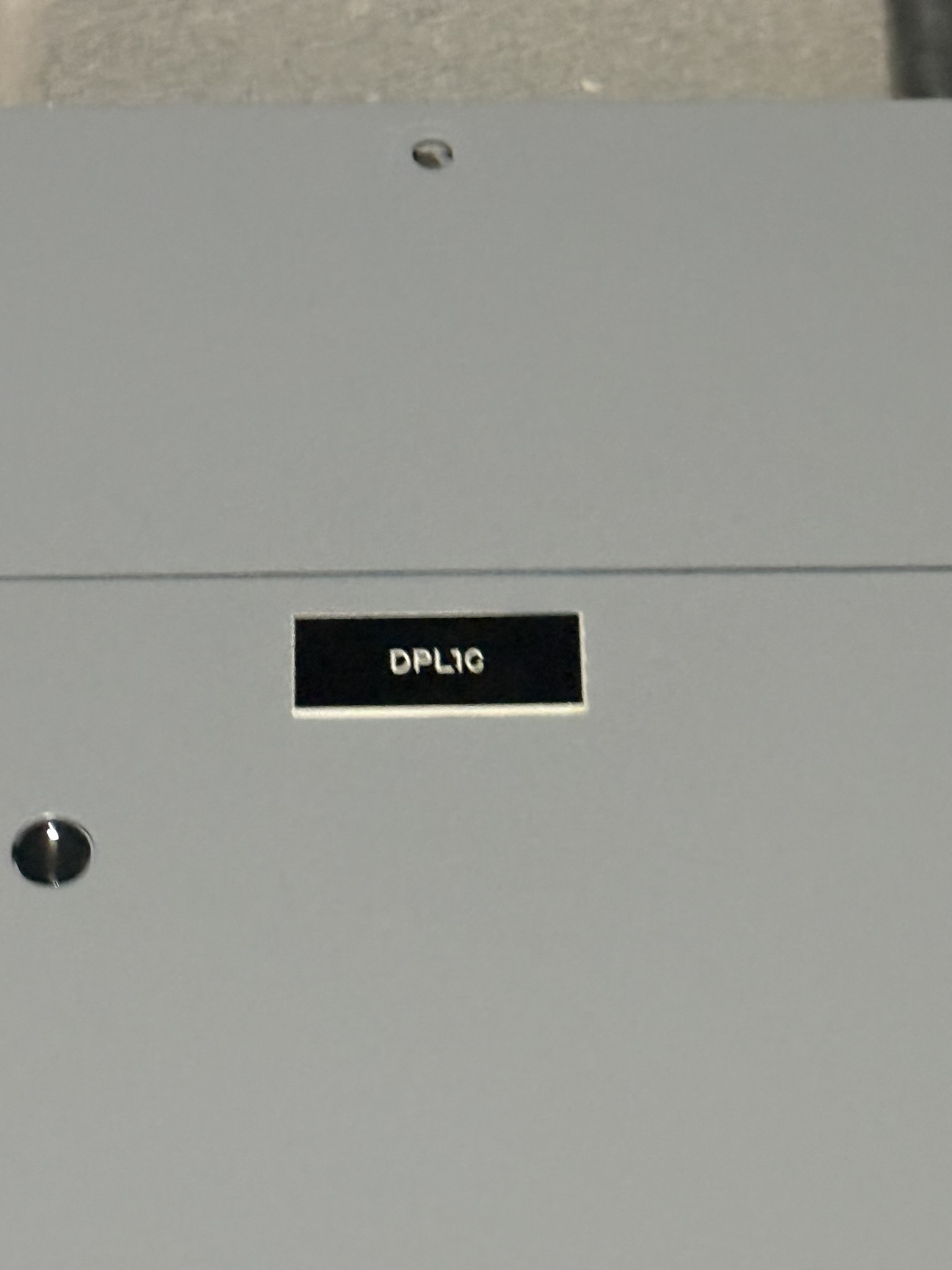

DPL1C
L1CC
EH1E
EL1E

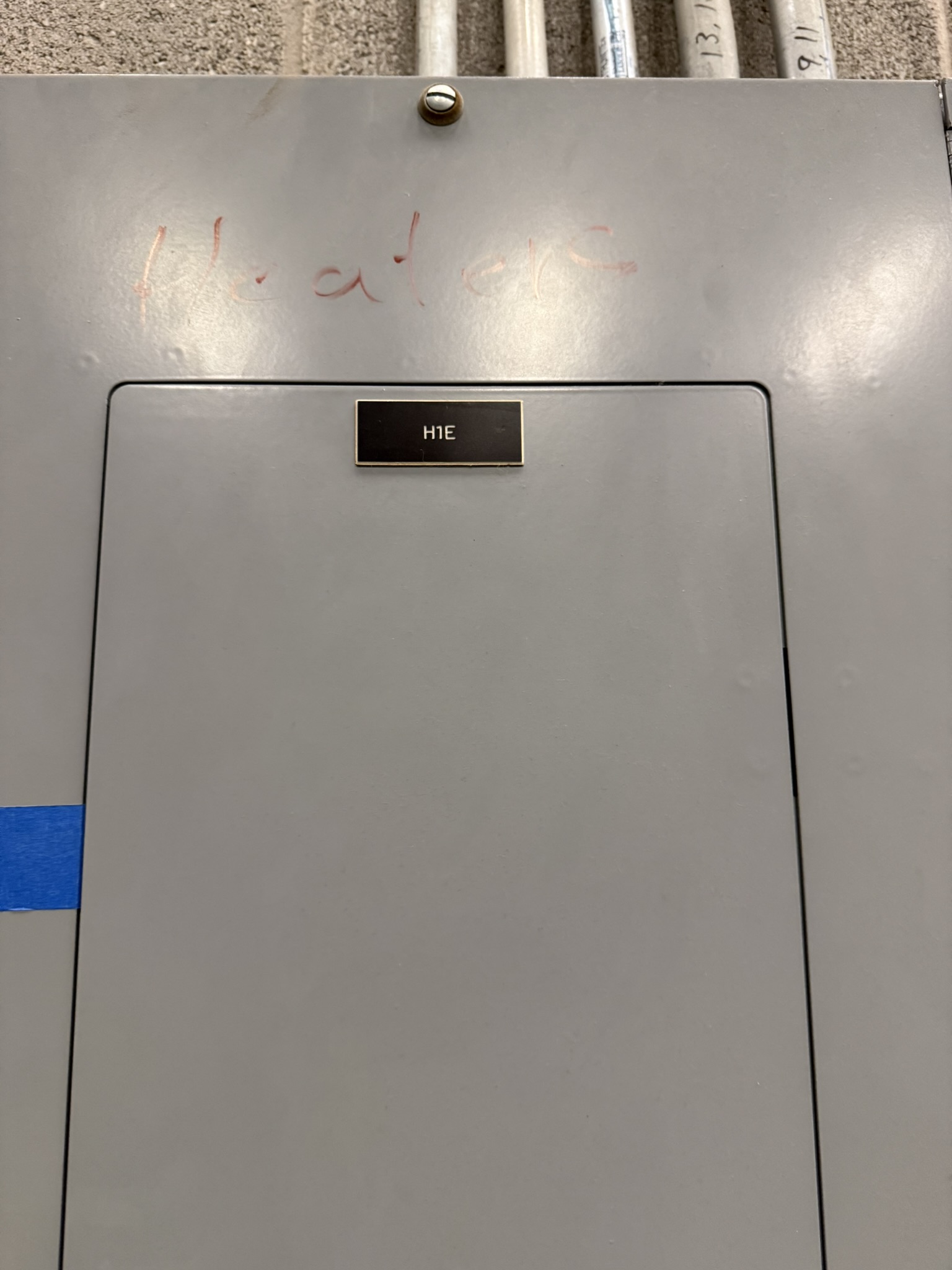

H1E
DPL1E
L1EA

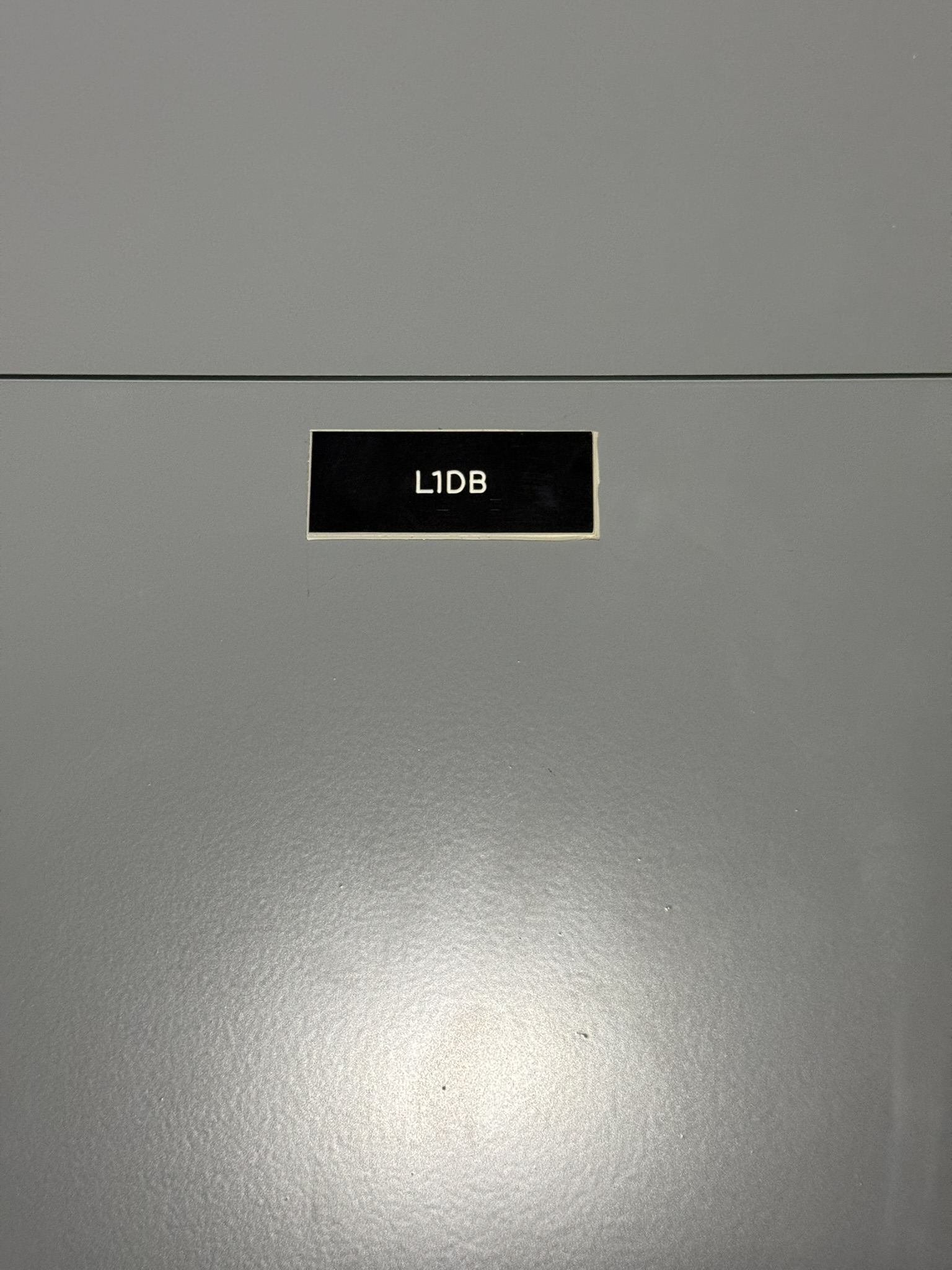

L1DB
DPL1D
H1D

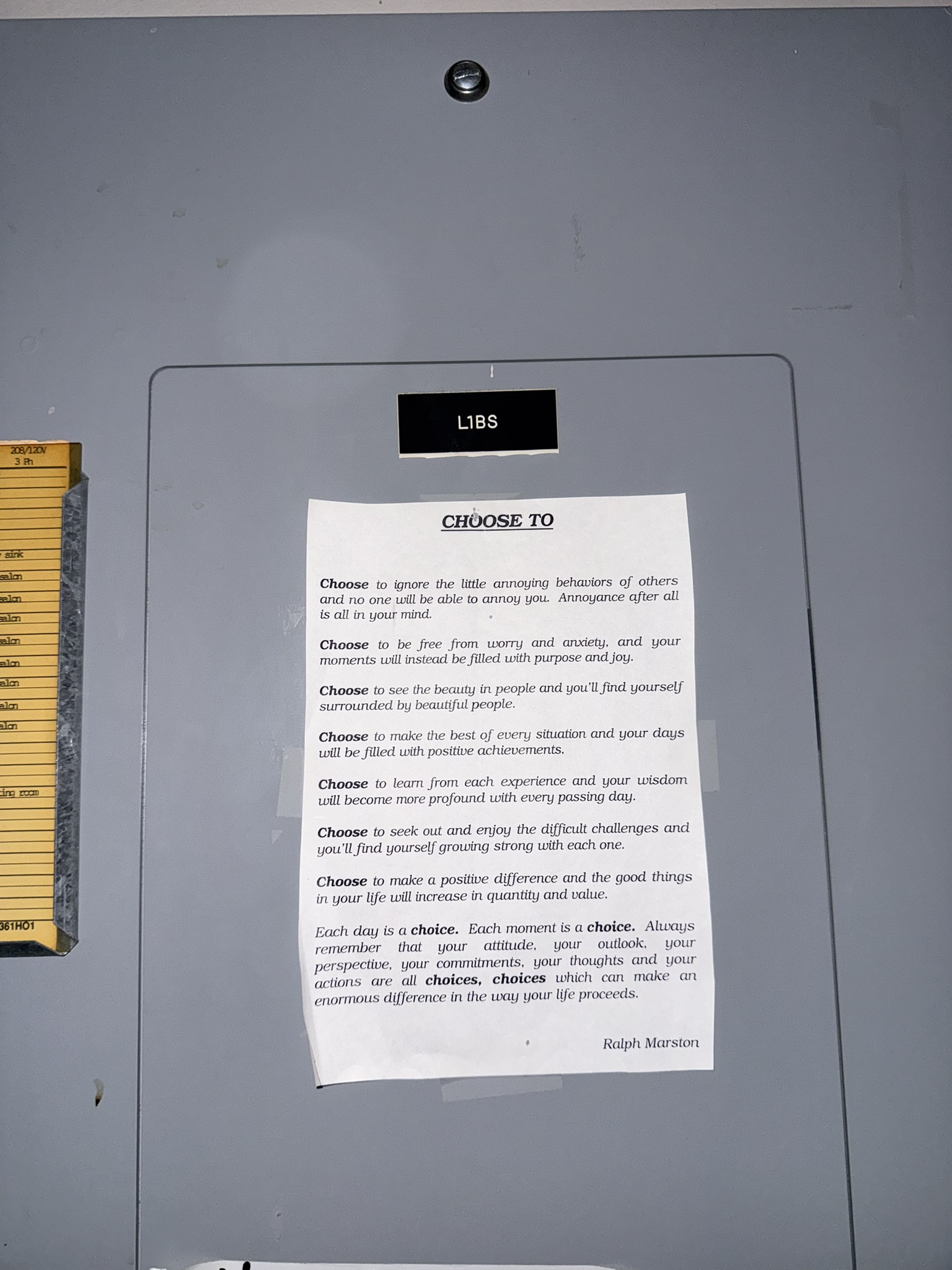

L1BS
Breaker/Label Rating - Breaker Amperage - Corresponding Transformer
| Breaker / Label | Rating / Breaker AMP | Breaker Picture | Corresponding Transformer |
|---|---|---|---|

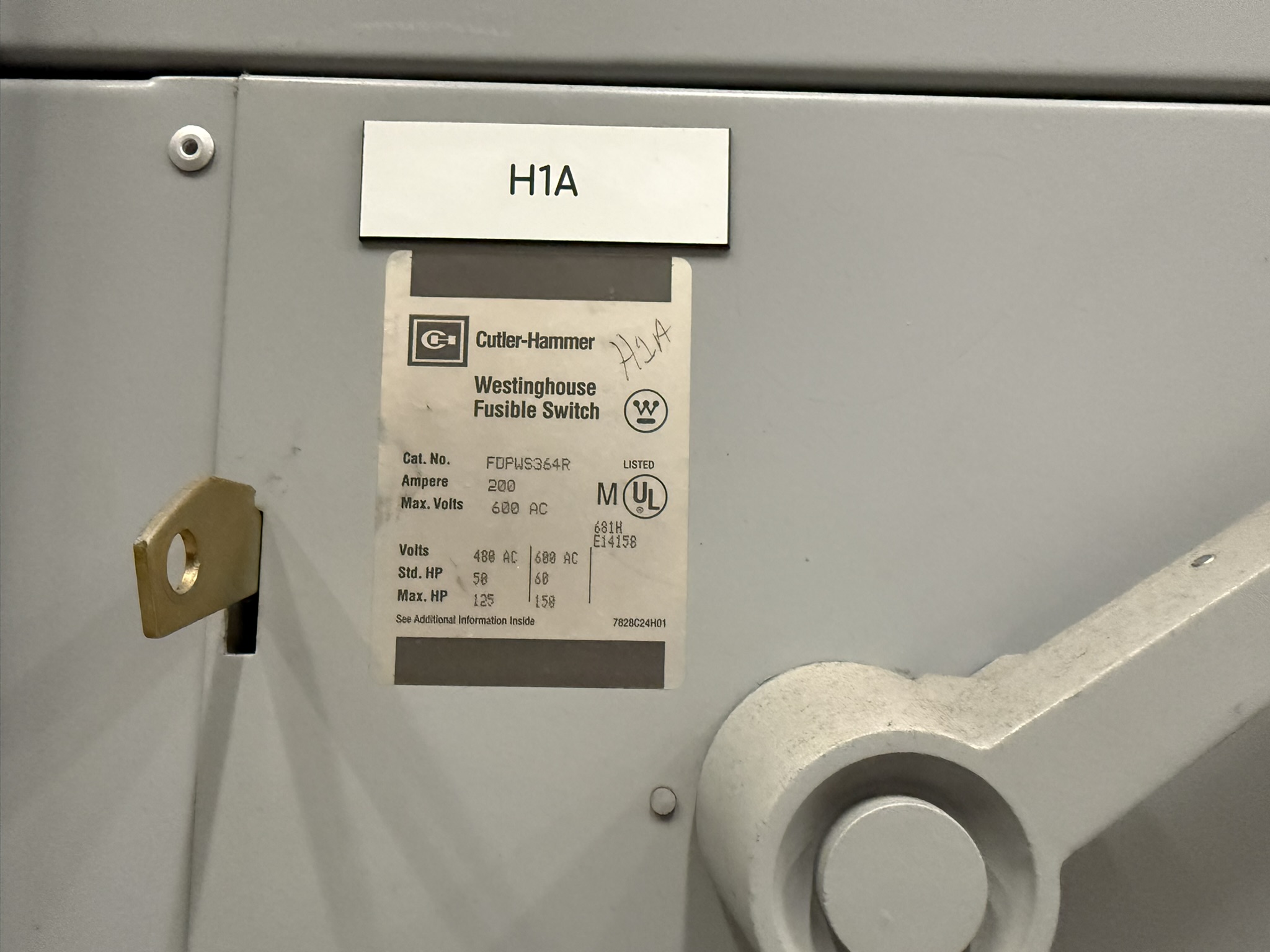

| H1A | 200 | View Picture | |
| H1B | 200 | View Picture | |

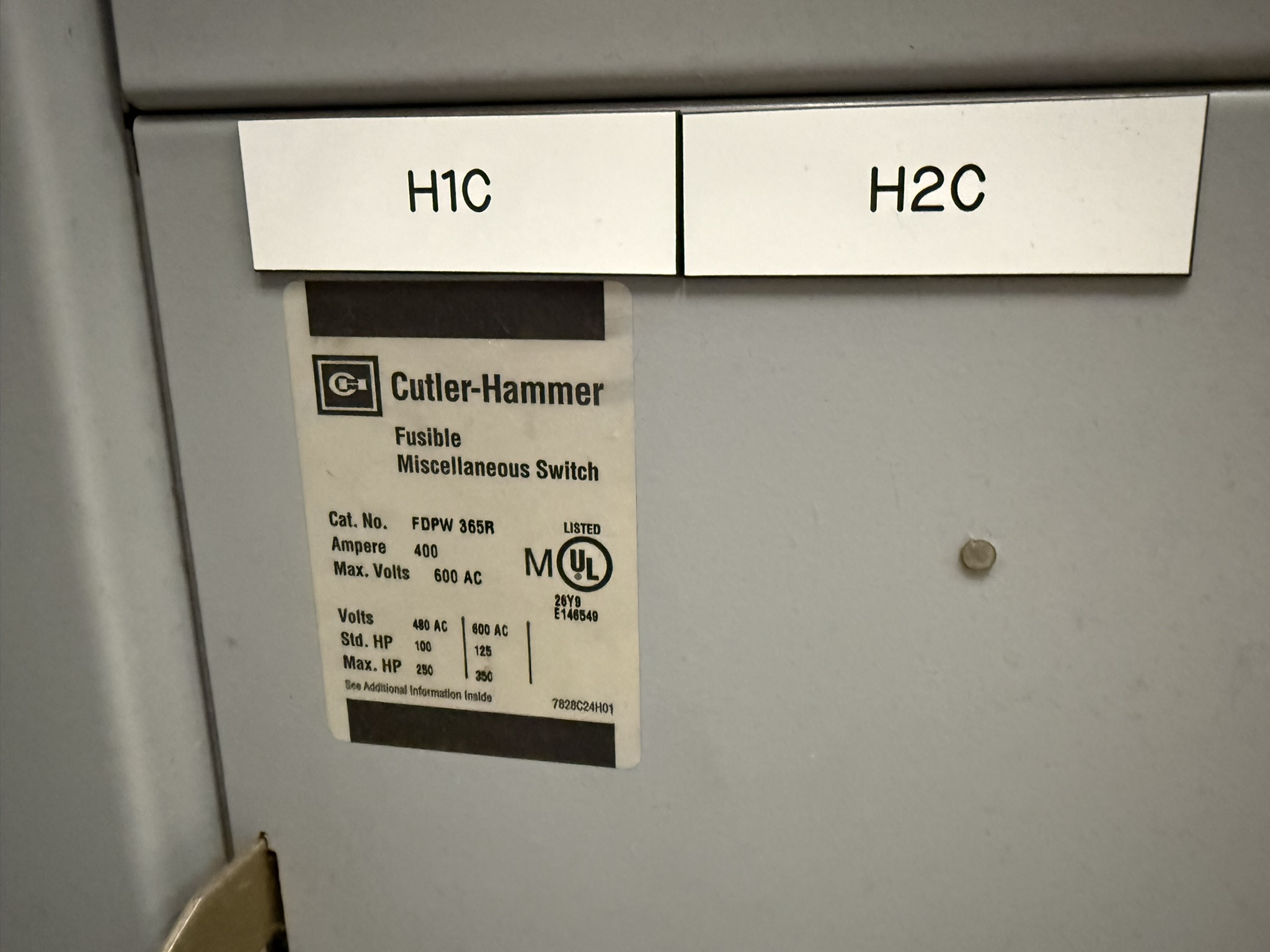

| H1C / H2C | 400 | View Picture | |

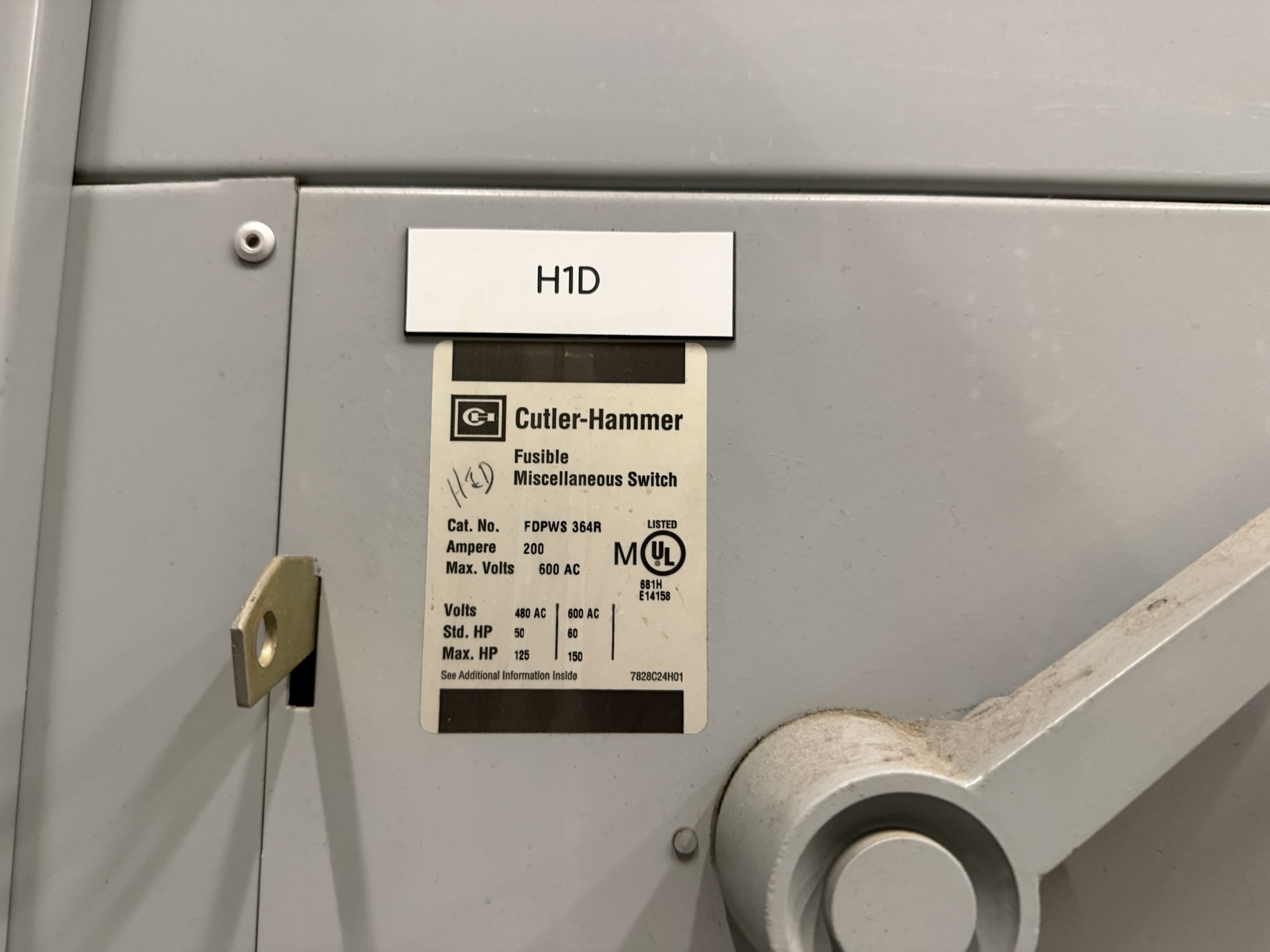

| H1D | 200 | View Picture | |

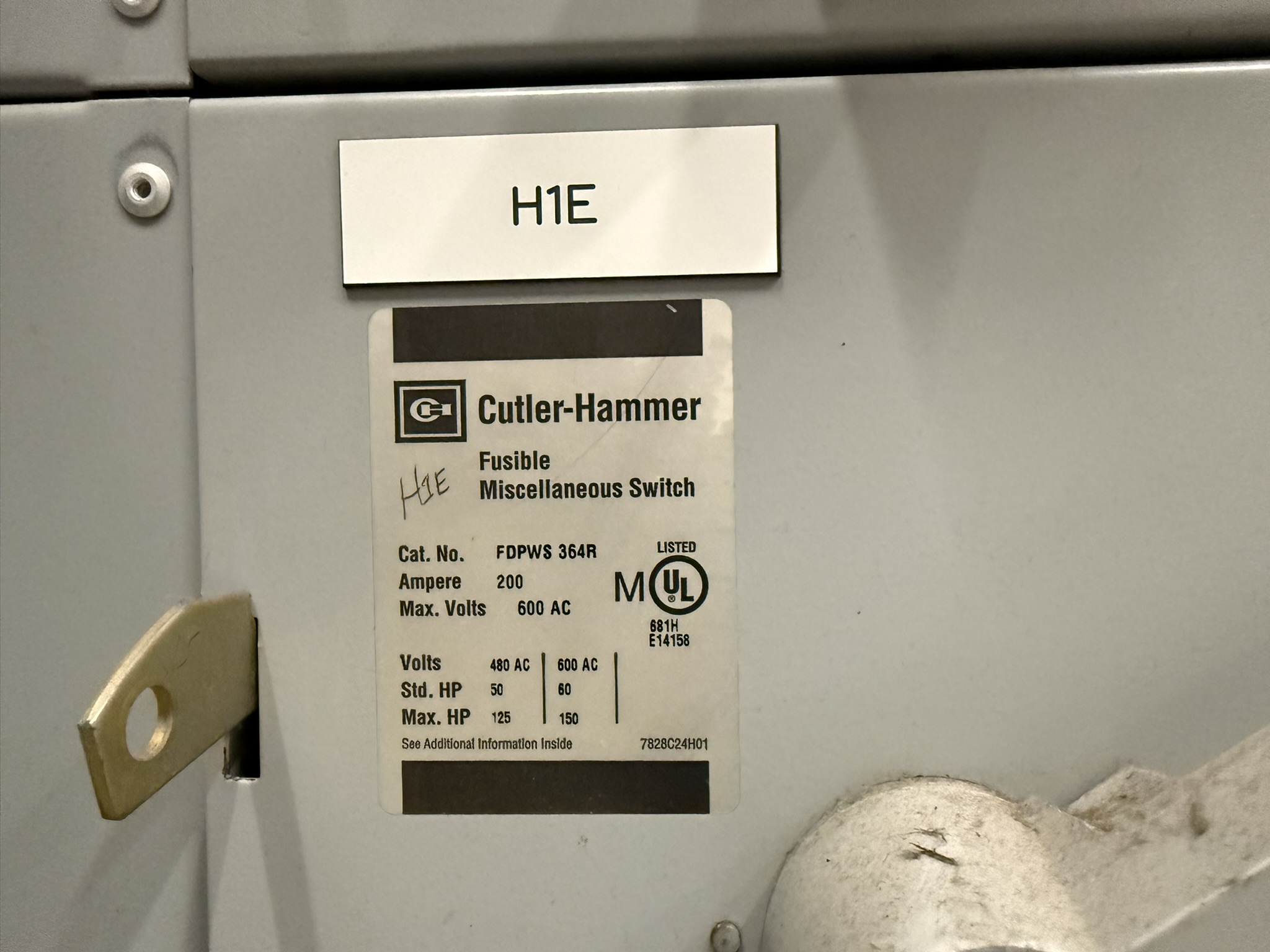

| H1E | 200 | View Picture | |
| H2A | 200 | View Picture | |

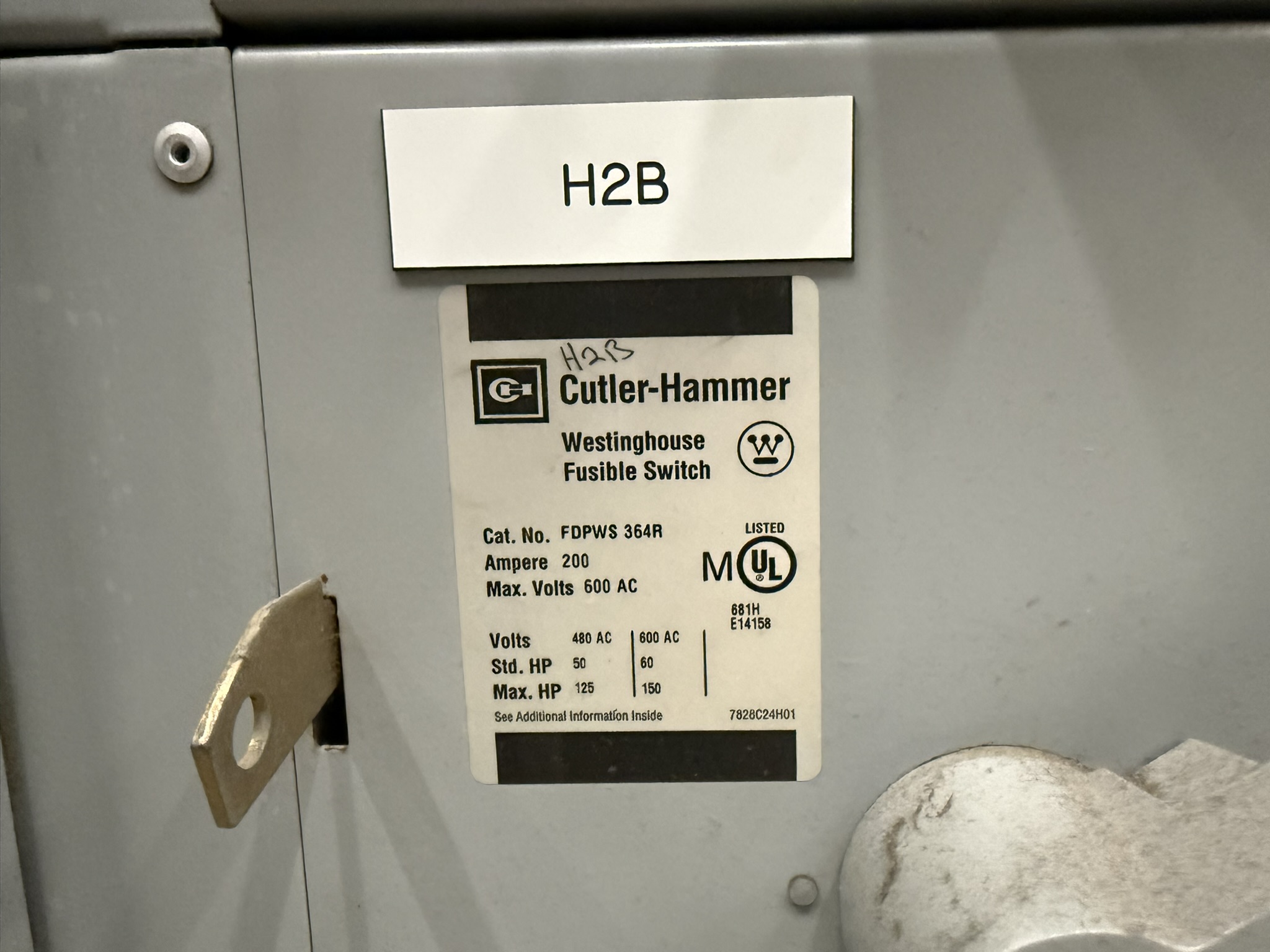

| H2B | 200 | View Picture | |
| H2D | 200 | View Picture | |

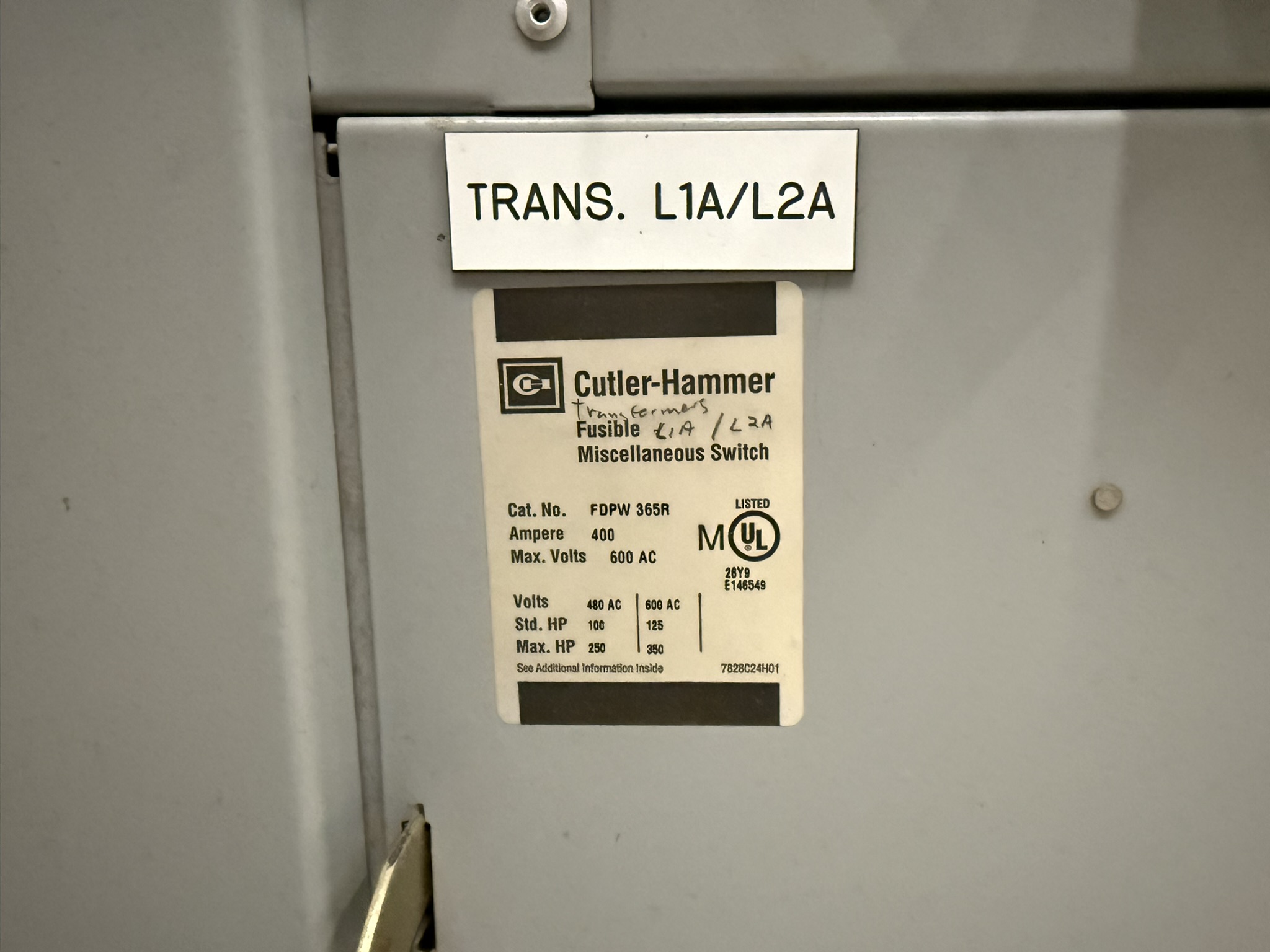

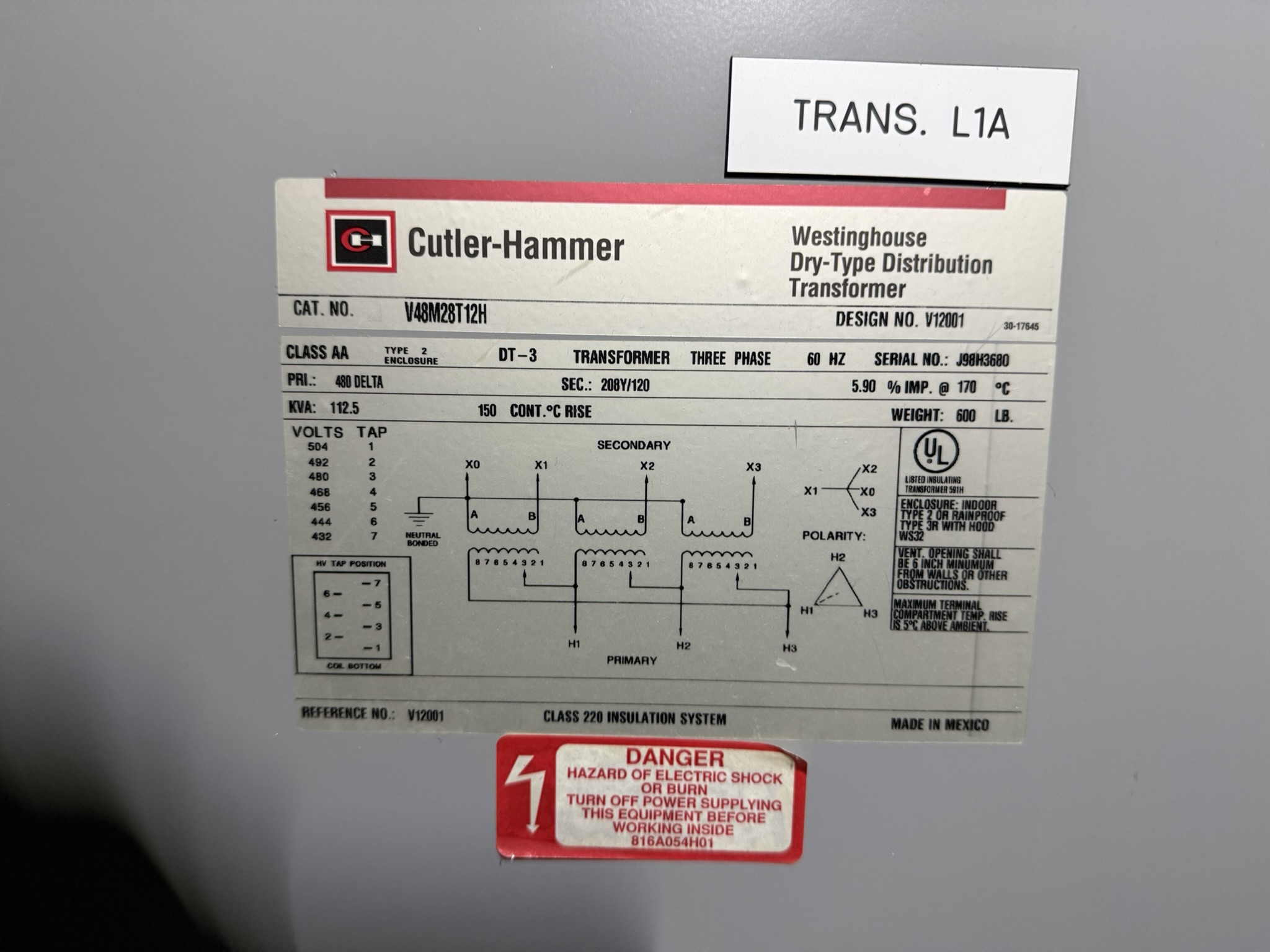

| Trans L1A / L2A | 400 | View Picture | TRANS. L1A |

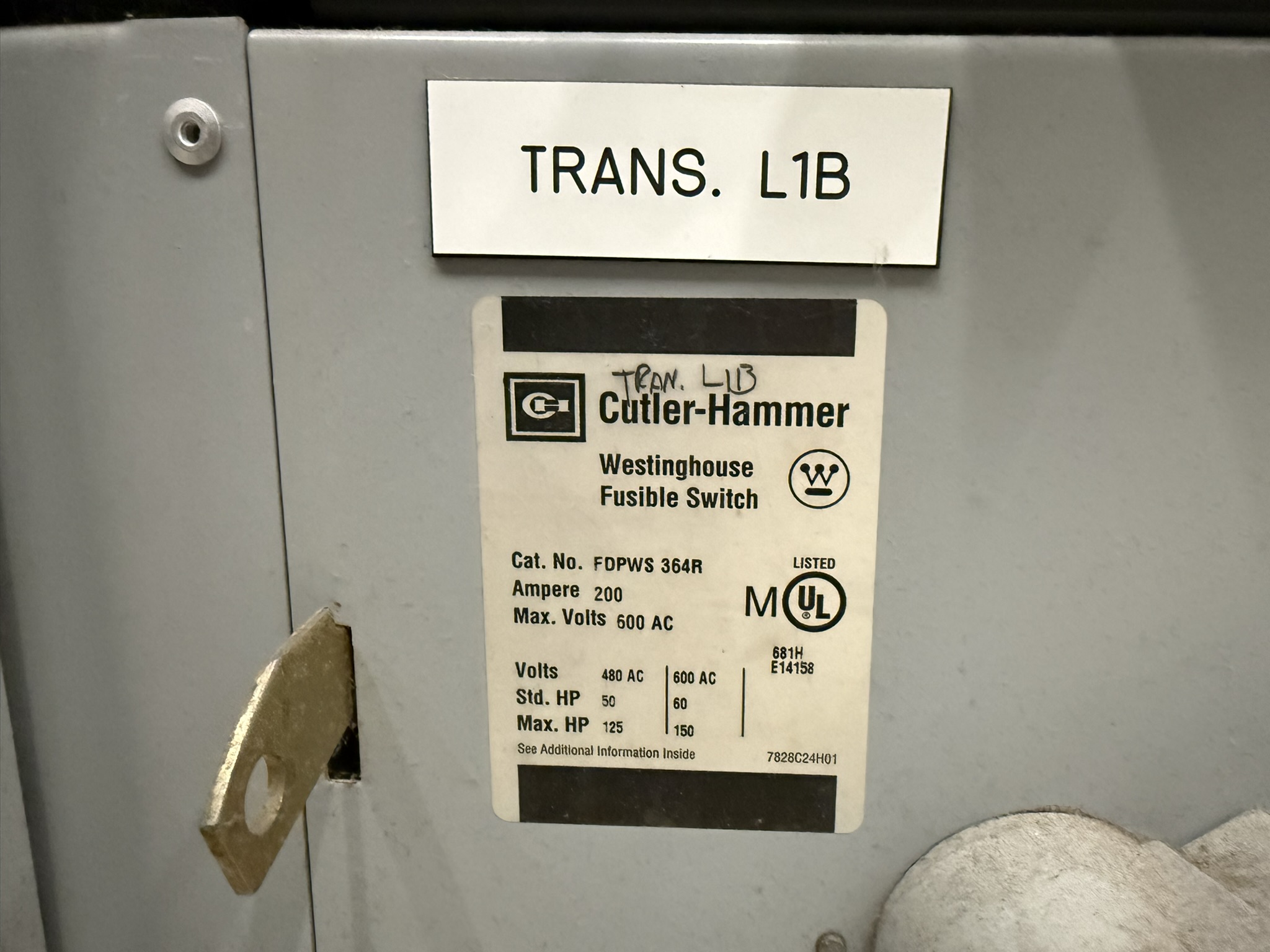

| Trans L1B | 200 | View Picture | TRANS. L1B |

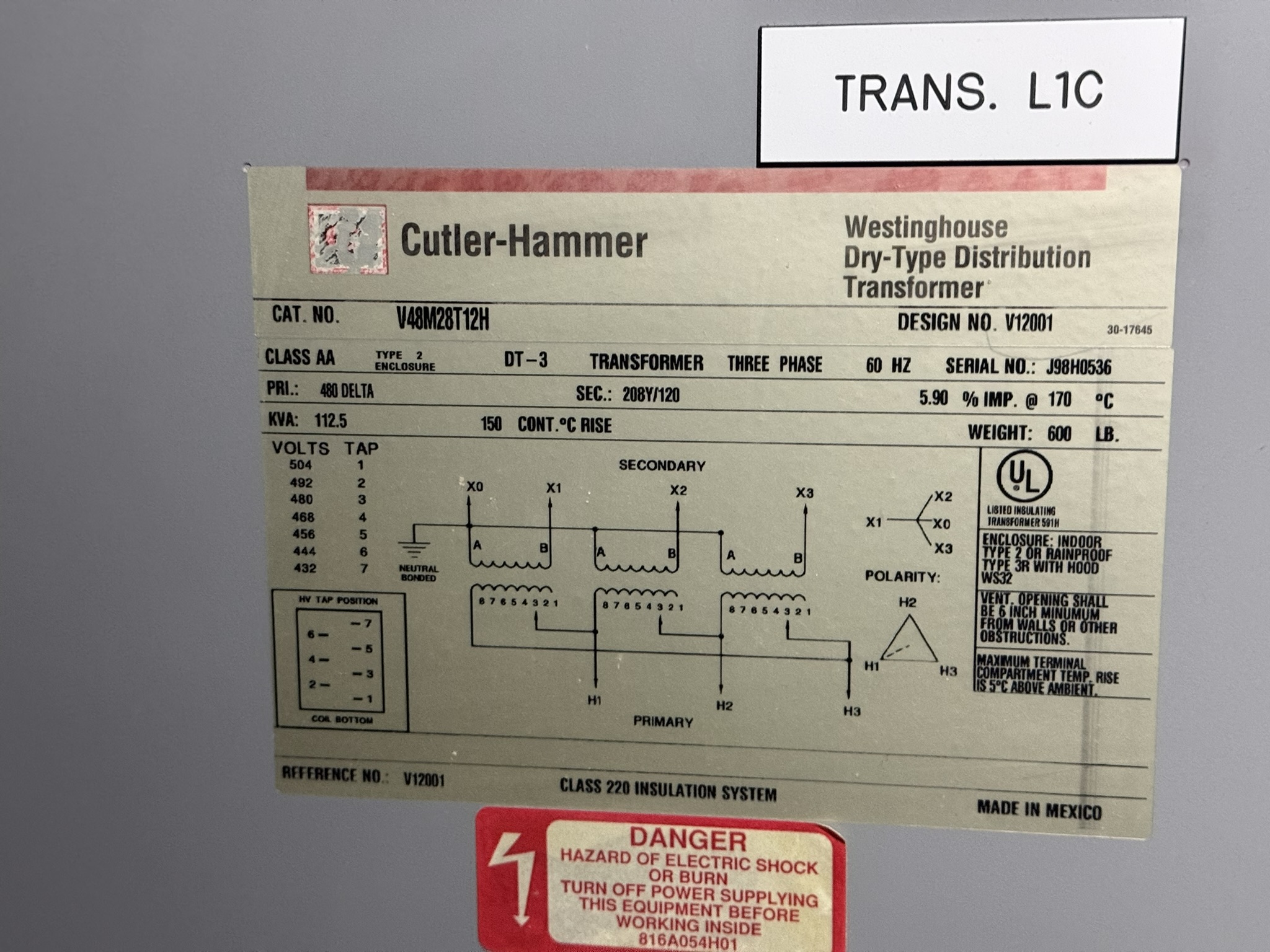

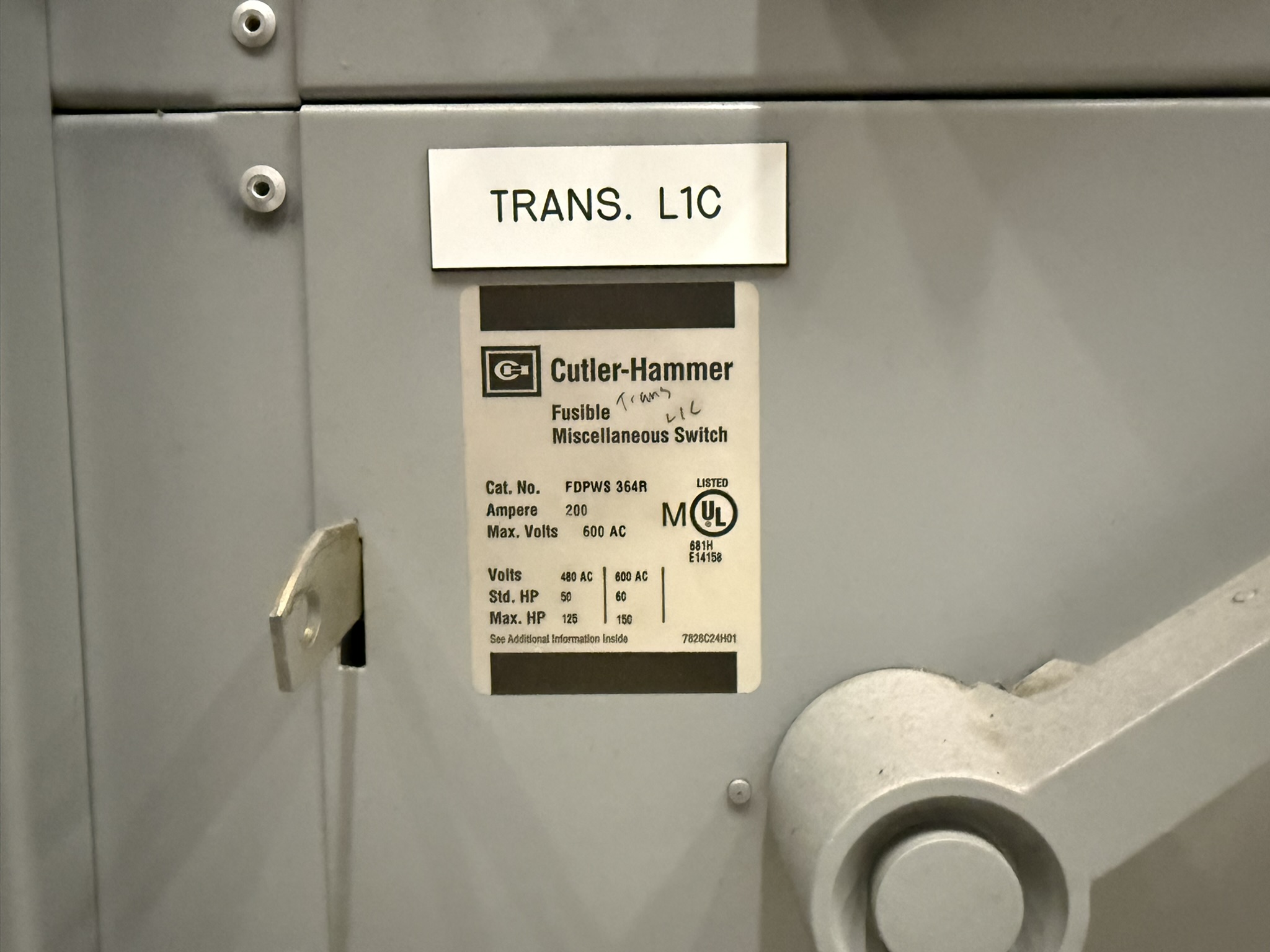

| Trans L1C | 200 | View Picture | TRANS. L1C |

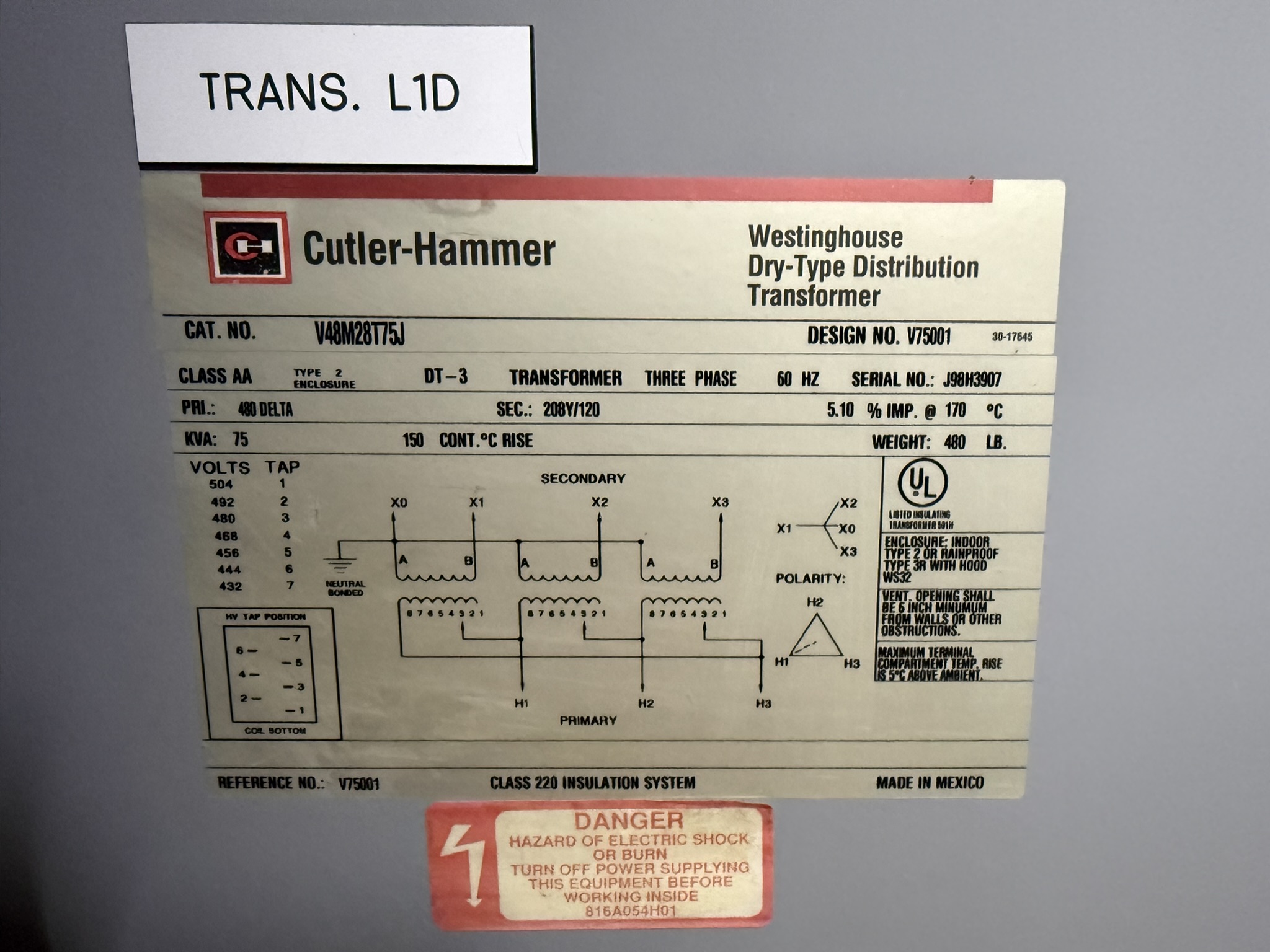

| Trans L1D / L2D | 200 | View Picture | TRANS. L1D |

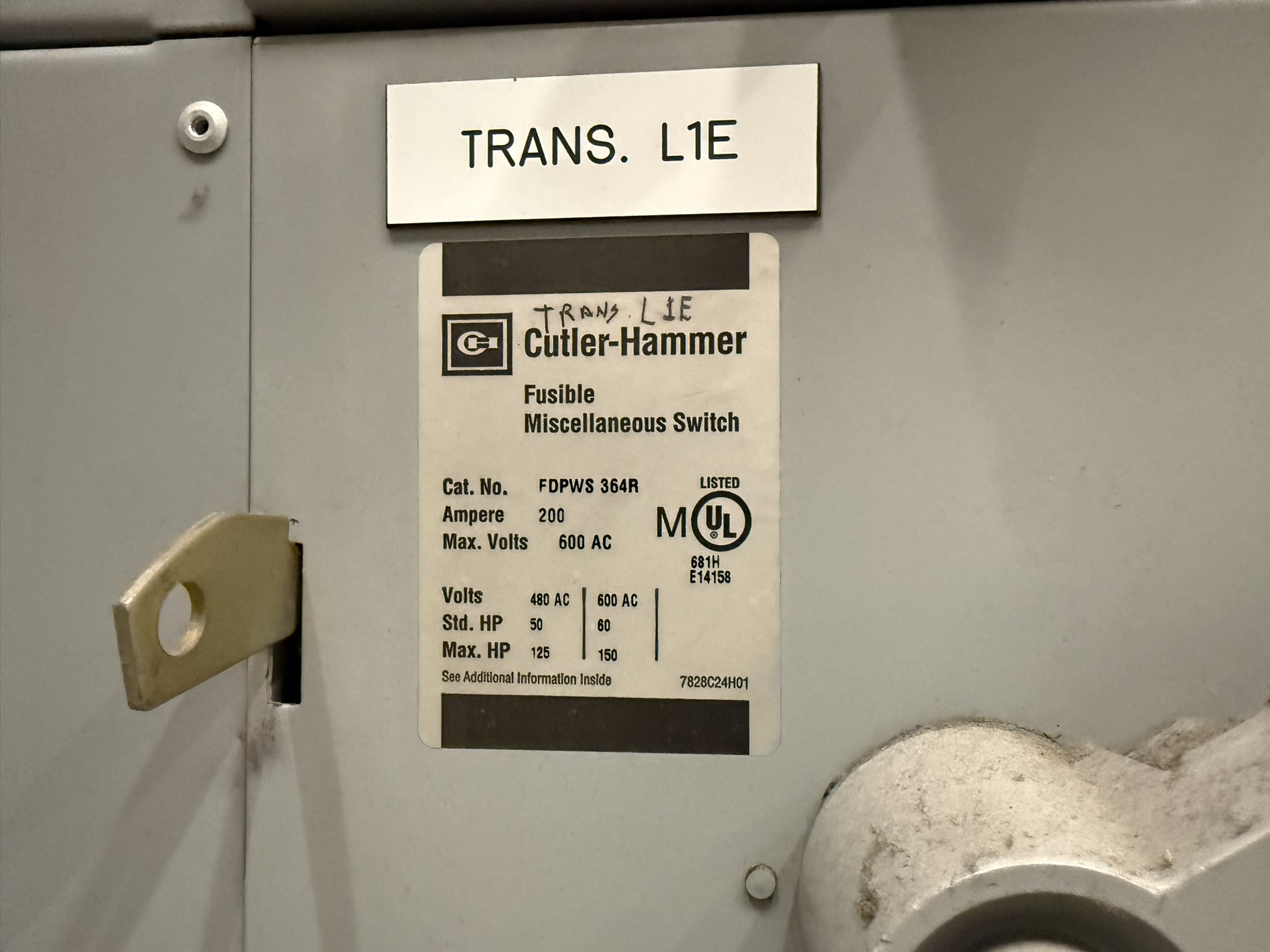

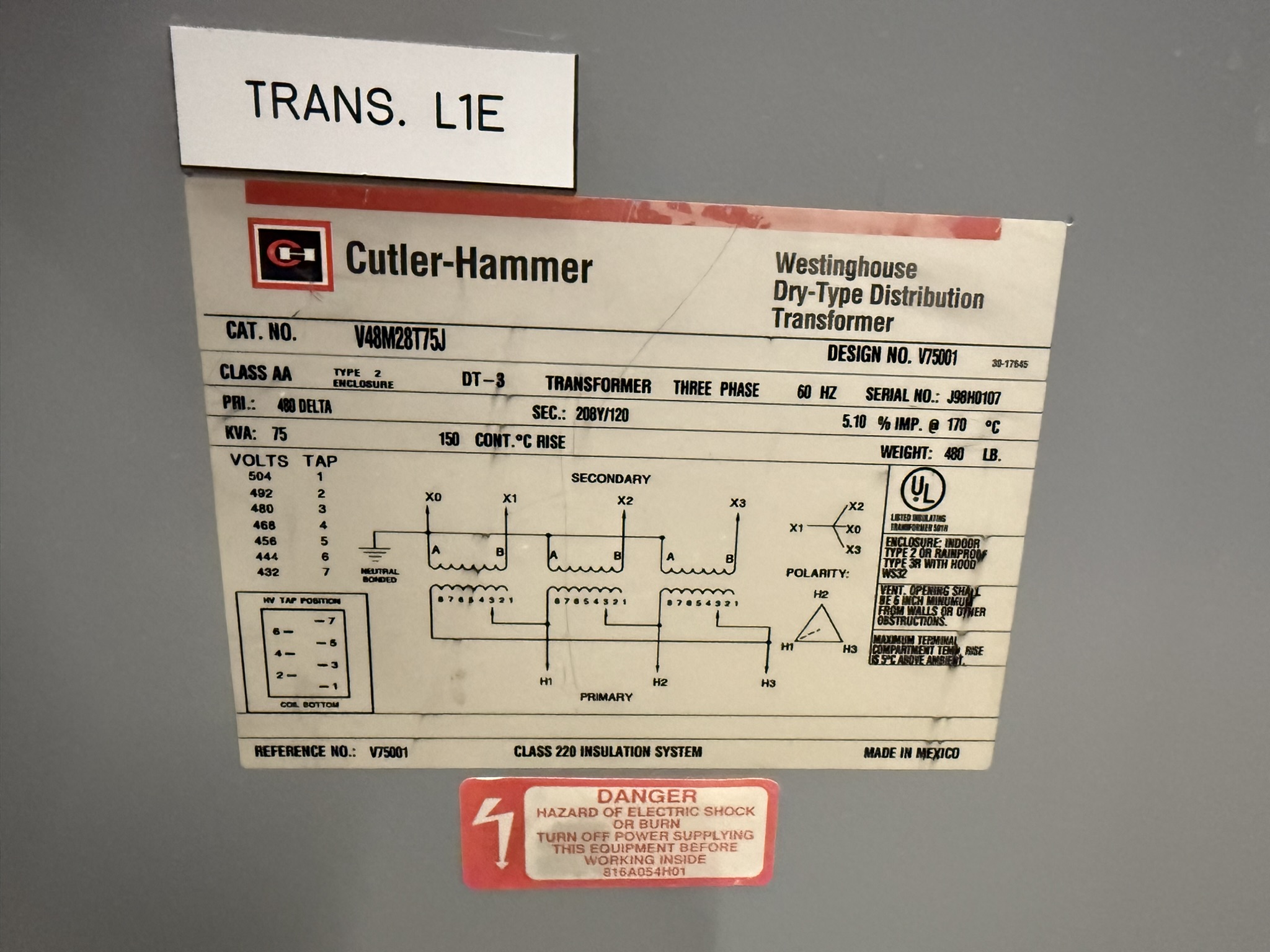

| Trans L1E | 200 | View Picture | TRANS. L1E |
| Trans L2B | 400 | View Picture | |

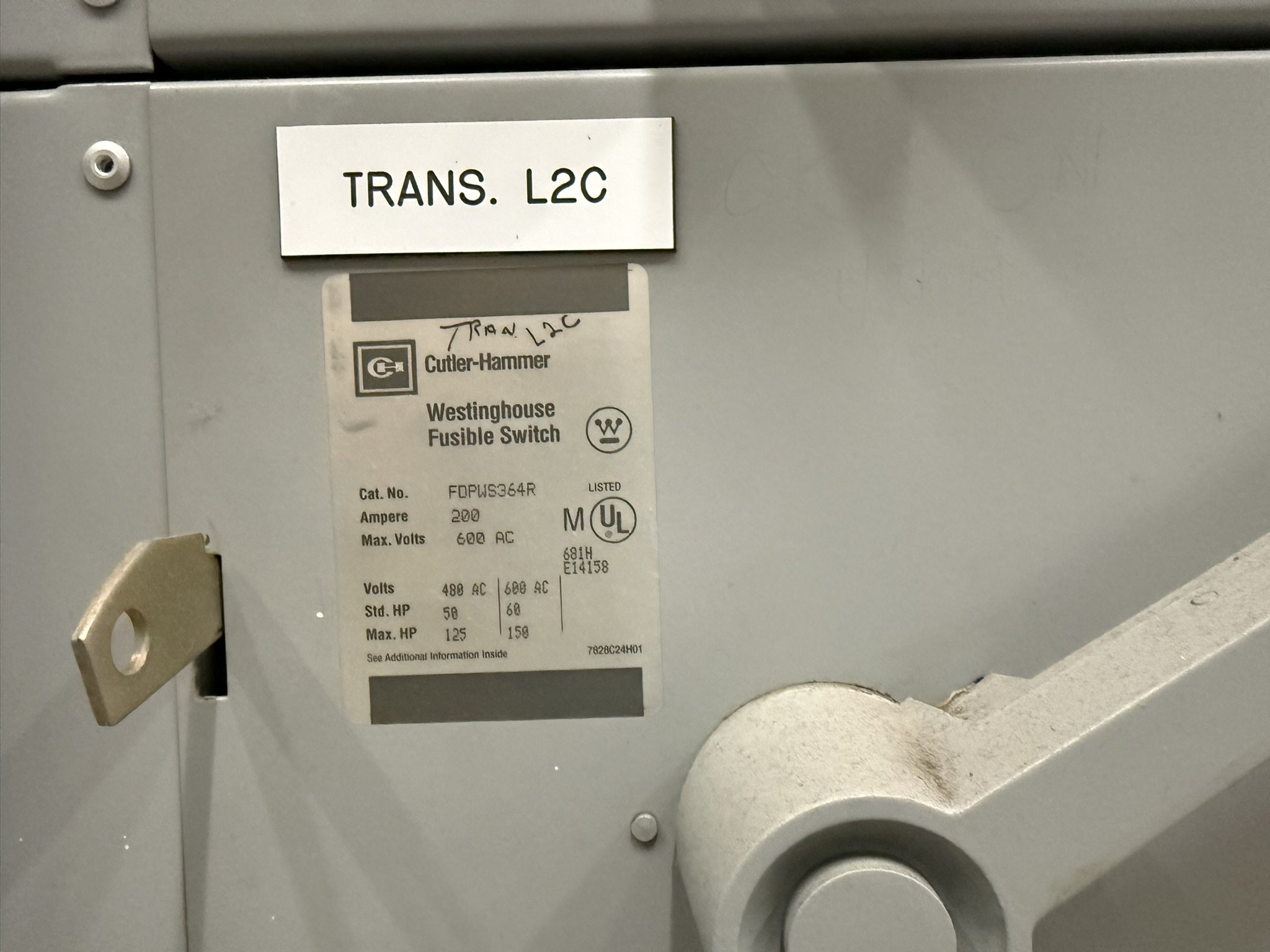

| Trans L2C | 200 | View Picture | |

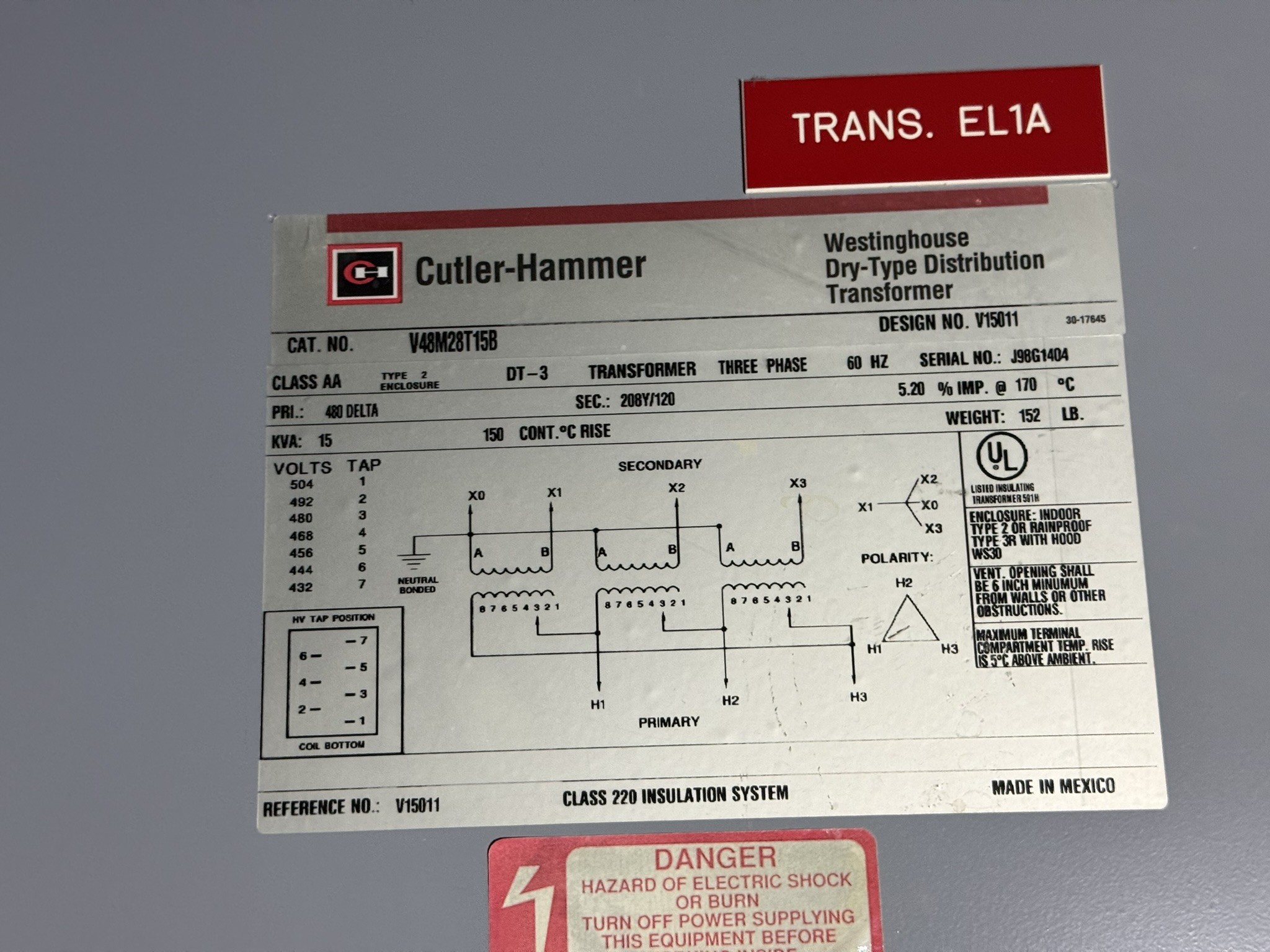

| Trans EL1A | TRANS. EL1A | ||

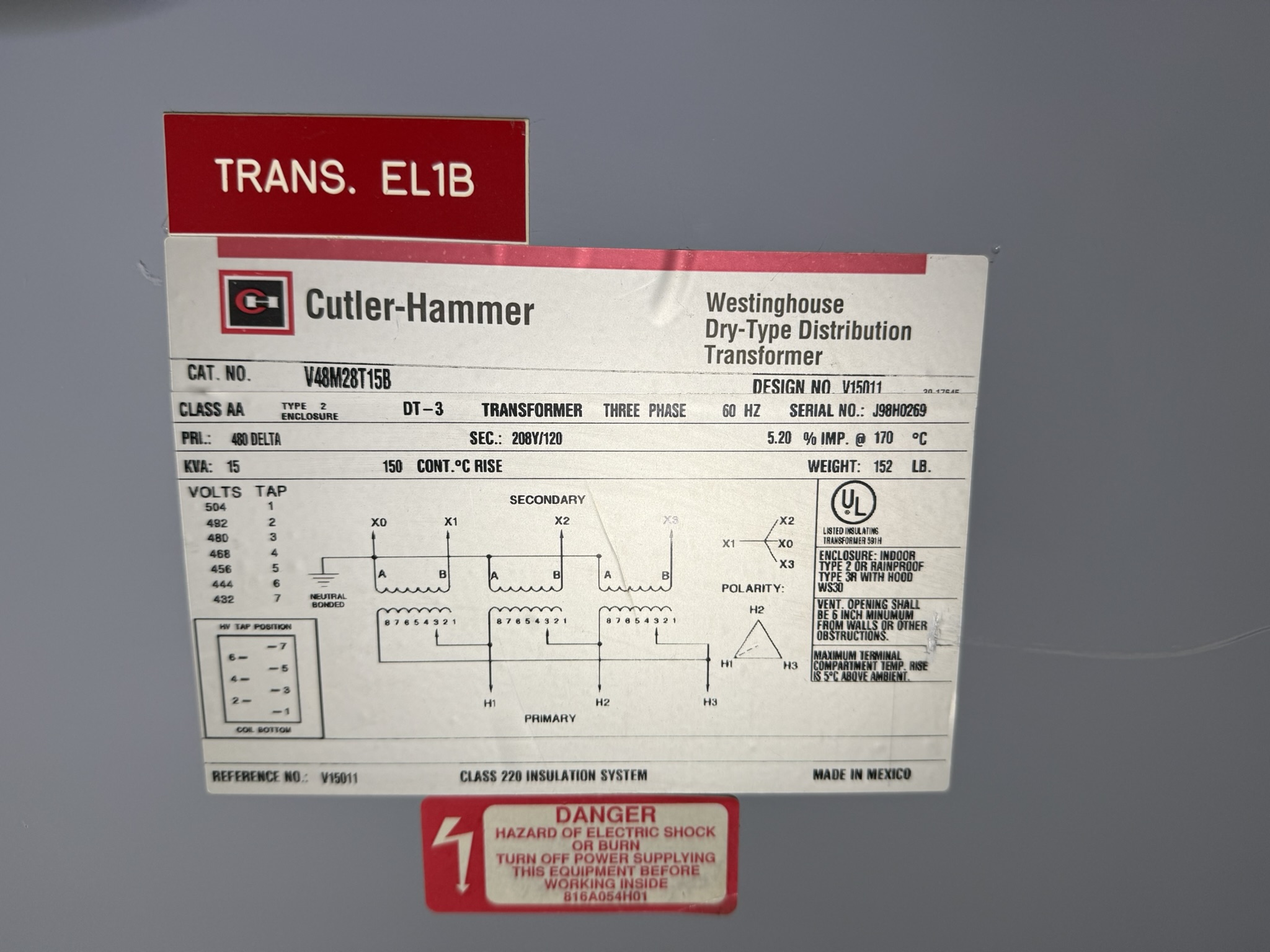

| Trans EL1B | TRANS. EL1B | ||

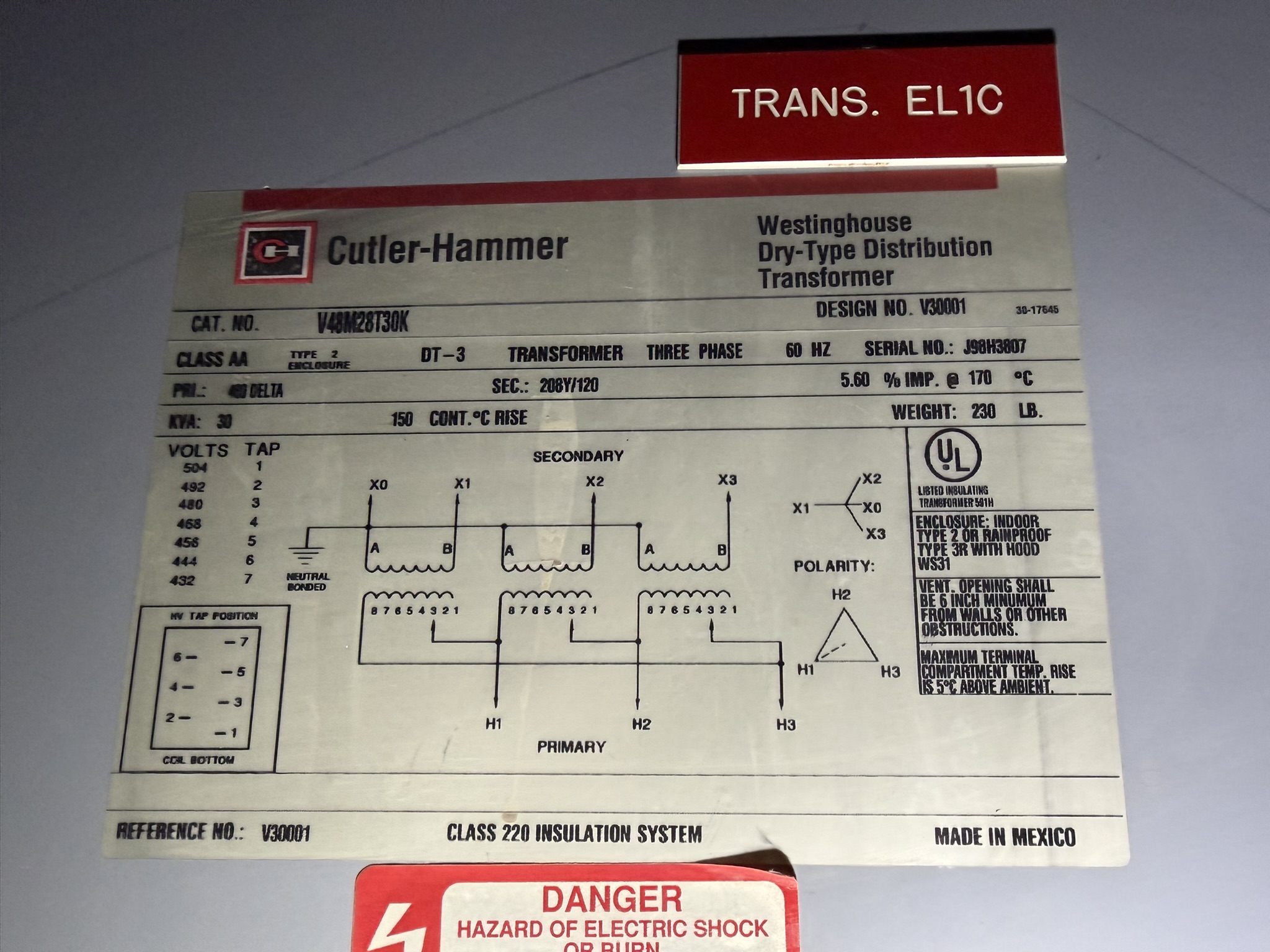

| Trans EL1C | TRANS. EL1C |
